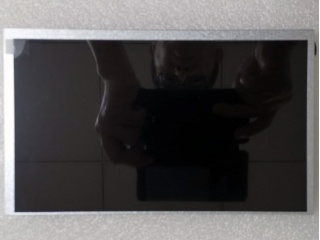

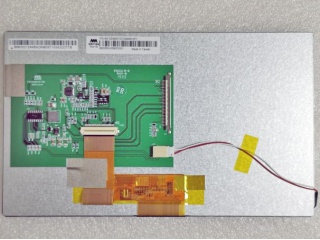

| PartNumber | AM-1024600Y3TZQW-A0H |
| Znamka | AMPIRE |
| Velikost | 9.0 |
| Aplikacija | Industrial |
| Resolucija | 1024×600 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AMPIRE |
| panelni model | AM-1024600Y3TZQW-A0H |
| velikost plošče | 9.0" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1024(RGB)×600, WSVGA, 132PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 196.6(W)×114.1(H) mm |
| odprtina okvirja | 200(W)×117.55(H) mm |
| velikost obrisa | 211.1(W)×126.5(H) ×11(D) mm |
| površino | - |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način prikaza | Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 18/17 (Typ.)(Tr/Td) |
| barve zaslona | 16.7M |
| tip svetilke | WLED , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| teža plošče | TBD |
| aplikacija | Industrial |
| signalni vmesnik | LVDS (1 ch, 8-bit) , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
