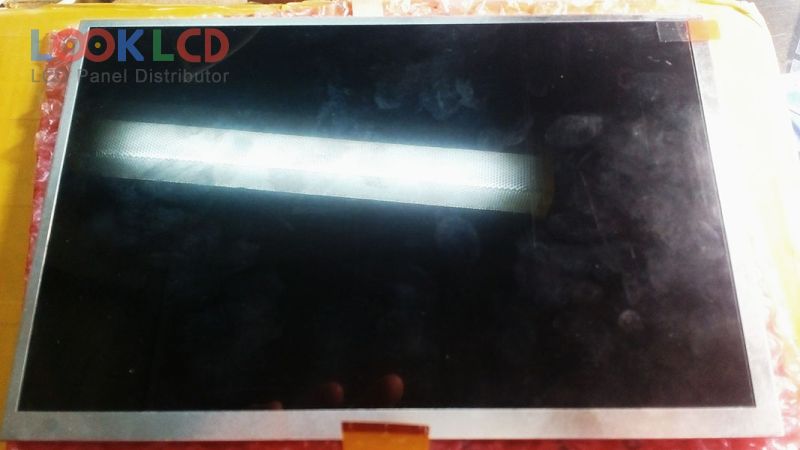

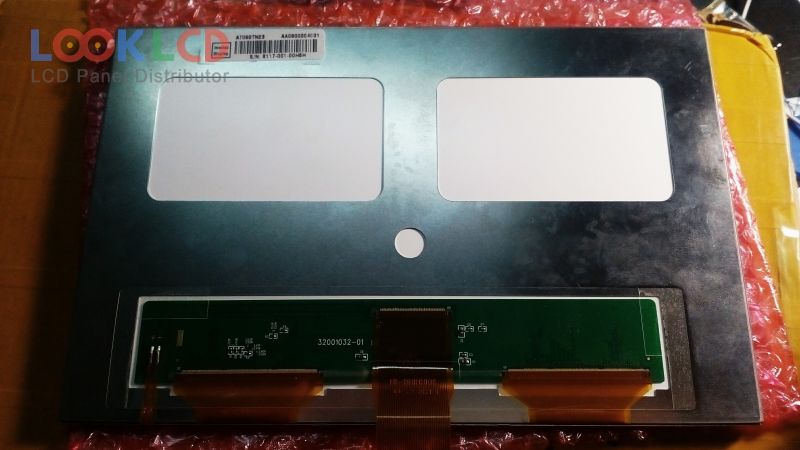

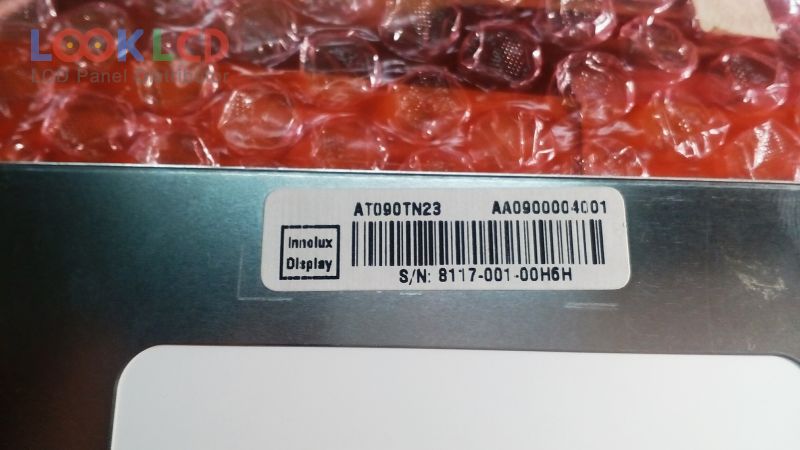

| PartNumber | AT090TN23 |
| Znamka | Innolux |
| Velikost | 9.0 |
| Aplikacija | PAD |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 340 |
| CR | 700:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CHIMEI INNOLUX |
| panelni model | AT090TN23 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 9.0 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 193.92×121.2 mm |
| oris | 206.76×135.06 mm |
| površino | |
| svetlost | 340 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6/8-bit), 40 pins |
| vhodna napetost | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| aplikacija | PAD |
