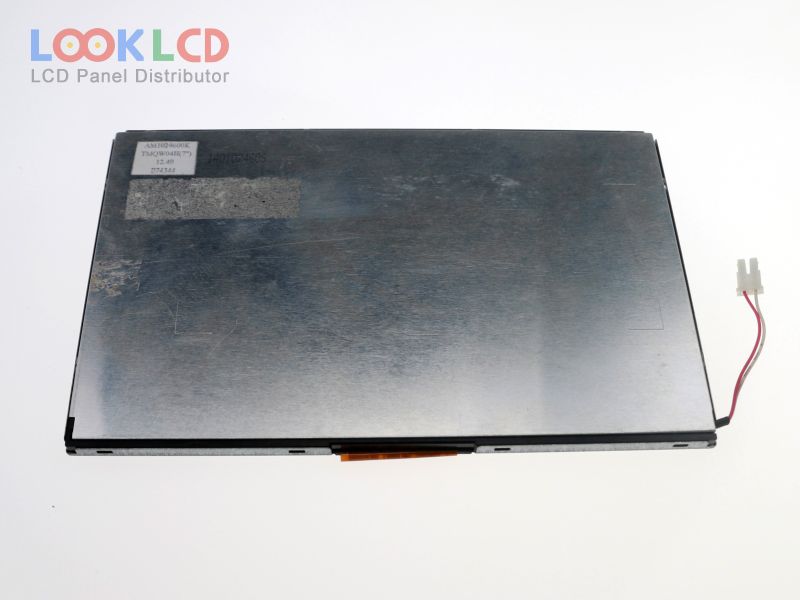

| PartNumber | AM-1024600KTMQW-04H |
| Znamka | AMPIRE |
| Velikost | 7.0 |
| Aplikacija | CNS |
| Resolucija | 1024×600 |
| Sestava | LCM |
| Svetlost | 1000 |
| CR | 700:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AMPIRE |
| panelni model | AM-1024600KTMQW-04H |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 153.6×90 mm |
| oris | 165.5×104.44×5.3 mm |
| površino | Glare (Haze 0%), Hard coating |
| svetlost | 1000 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8S3PWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 39 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | CNS |
