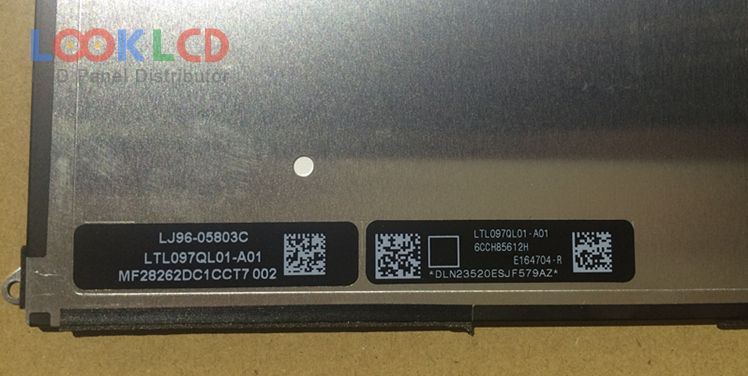

| PartNumber | LTL097QL01-A01 |
| Znamka | Samsung |
| Velikost | 9.7 |
| Aplikacija | PAD |
| Resolucija | 2048×1536 |
| Sestava | LCM |
| Svetlost | 420 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | SAMSUNG |
| panelni model | LTL097QL01-A01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 9.7 inch |
| resolucija | 2048(RGB)×1536 , QXGA |
| način prikaza | PLS, Normally Black, Transmissive |
| aktivno območje | 196.608×147.456 mm |
| površino | |
| svetlost | 420 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLED |

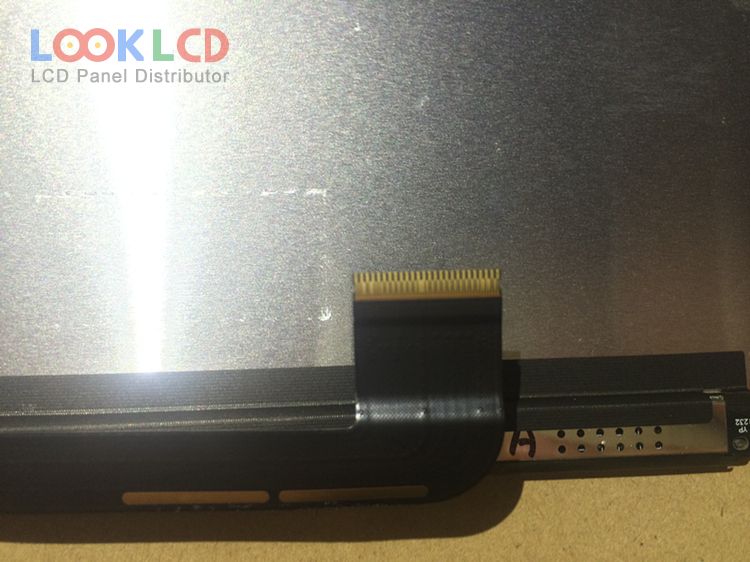

| signalni vmesnik | eDP (4 Lanes) |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
