| PartNumber | N101ICG-L21 Rev.C2 |
| Znamka | Innolux |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CMO |
| panelni model | N101ICG-L21 Rev.C2 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | AAS, Normally Black, Transmissive |
| aktivno območje | 216.96×135.6 mm |
| oris | 227.42×147.69×4.85 mm |
| površino | Glare (Haze 0%), Hard coating (3H) |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193150% |
| odzivni čas | 14/11 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 3 stringsWLEDWithout Driver |

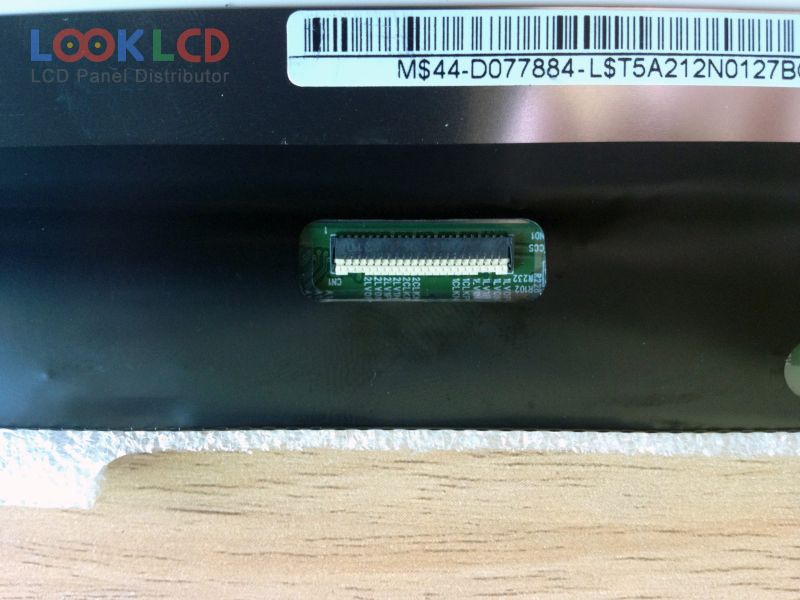

| signalni vmesnik | LVDS (1 ch, 6-bit), 45 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
| AM-19201200B1TZQW-T00 | AMPIRE | 10.1 | 1920×1200 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| N101L6-L01 | Innolux | 10.1 | 1024×600 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| HSD100PXN1-A00-C11 | HannStar | 10.0 | 1024×768 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| LD083WU1-SPA3 | LG Display | 8.3 | 1200×1920 |
| LT070ME05000 | JDI | 7.0 | 1200×1920 |
| LTL070NL01-801 | Samsung | 7.0 | 1024×600 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL106HL02-001 | Samsung | 10.6 | 1920×1080 |
| M101NWWB R8 | IVO | 10.1 | 1280×800 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
