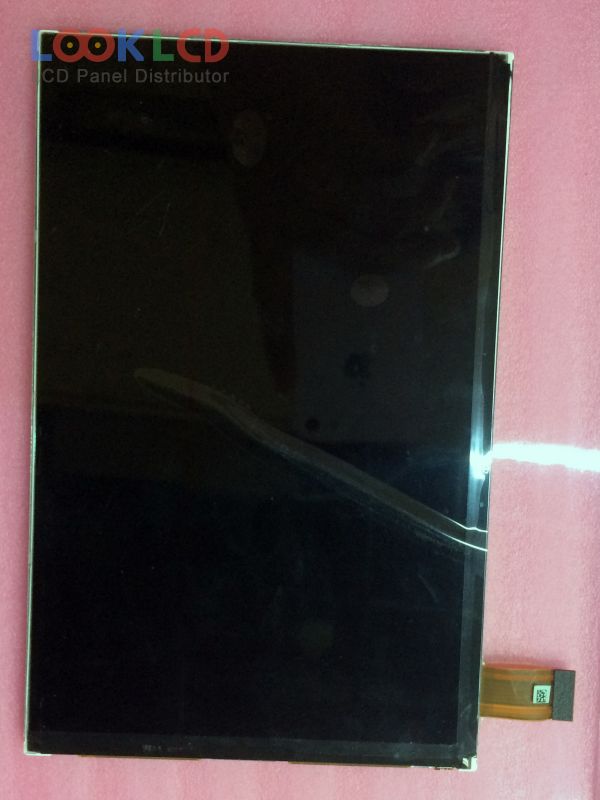

| PartNumber | VVX07H005A00 |
| Znamka | Panasonic |
| Velikost | 7.0 |
| Aplikacija | PAD |
| Resolucija | 800×1280 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 1000:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka plošče | Panasonic |
| panelni model | VVX07H005A00 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 800(RGB)×1280 , WXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 94.2×150.72 mm |
| oris | 104.32×161.67×3.8 mm |
| površino | Hard coating |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 30 (Max.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 5S5PWLEDWithout Driver |
| signalni vmesnik | MIPI (4 data lanes), 34 pins |
| vhodna napetost | 1.8/3.3V (Typ.)(VCC/VDD) |
| aplikacija | PAD |
