| PartNumber | LTL089CL02-002 |
| Znamka | Samsung |
| Velikost | 8.9 |
| Aplikacija | PAD |
| Resolucija | 1920×1200 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 900:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka plošče | SAMSUNG |
| panelni model | LTL089CL02-002 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 8.9 inch |
| resolucija | 1920(RGB)×1200 , WUXGA |
| način prikaza | PLS, Normally Black, Transmissive |
| aktivno območje | 191.52×119.7 mm |
| oris | 203.5×135.9×5.2 mm |
| površino | Glare (Haze 0%), Hard coating (2H) |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 7S5PWLEDWithout Driver |

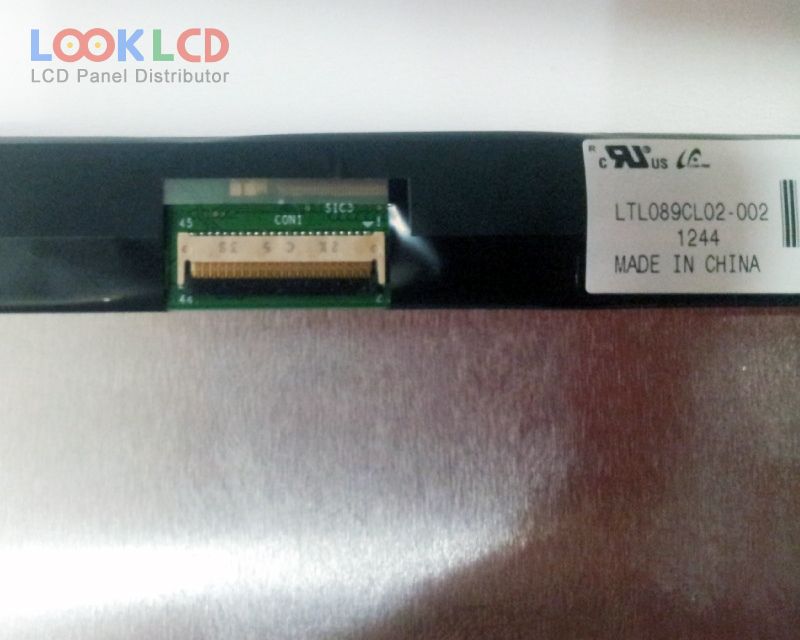

| signalni vmesnik | MIPI (4 data lanes), 45 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LP089WS1-TLA1 | LG Display | 8.9 | 1024×600 |
| LPM089A001A | JDI | 8.9 | 2560×1600 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-002 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| LTM09C362F | TOSHIBA | 8.9 | 1024×600 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| HE101NA-02C | Innolux | 10.1 | 1280×800 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| LD101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LP116WH4-SLA1 | LG Display | 11.6 | 1366×768 |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| VVX09F035M20 | Panasonic | 8.9 | 1920×1200 |
