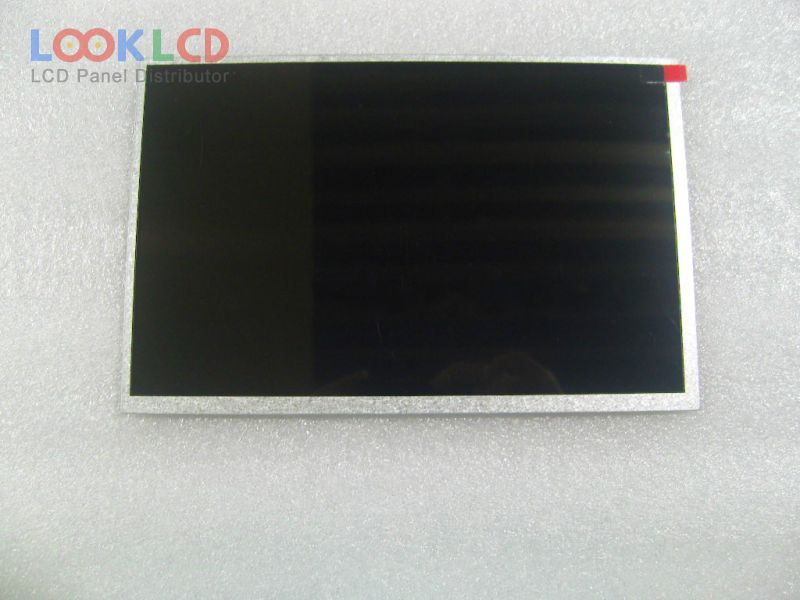

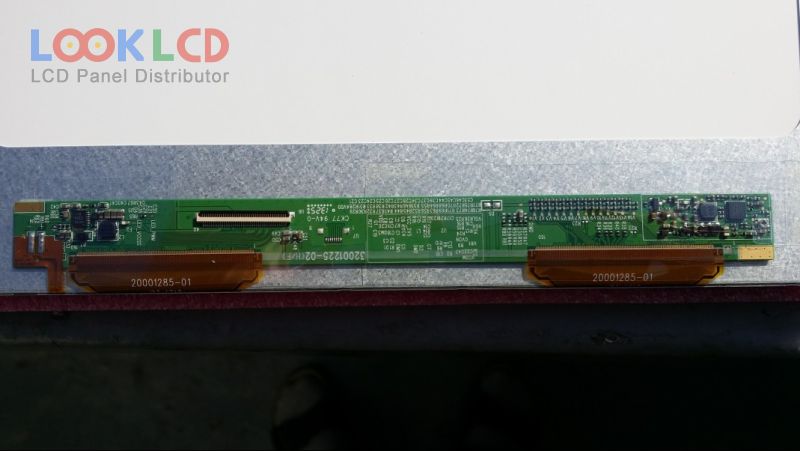

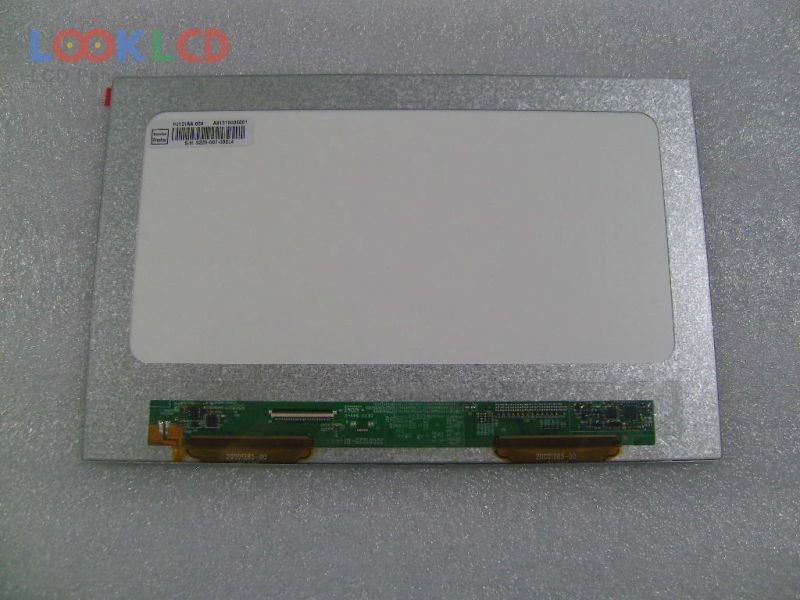

| PartNumber | HJ101NA-02A |
| Znamka | Innolux |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 700:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CHIMEI INNOLUX |
| panelni model | HJ101NA-02A |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 216.96×135.6 mm |
| oris | 229.46×149.1×5.55 mm |
| površino | Glare (Haze 0%) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 75/75/75/70 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 6/8-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| G101EVN01.3 | AUO | 10.1 | 1280×800 |
| HJ101IA-01F | Innolux | 10.1 | 1280×800 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| LP101WX1-SLN2 | LG Display | 10.1 | 1280×800 |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LPM089A001A | JDI | 8.9 | 2560×1600 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| N070ICN-GB1 | Innolux | 7.0 | 800×1280 |
| P070ACB-DB1 | Innolux | 7.0 | 600×1024 |
| Q101IRE-LA1 | Innolux | 10.1 | 1280×800 |
