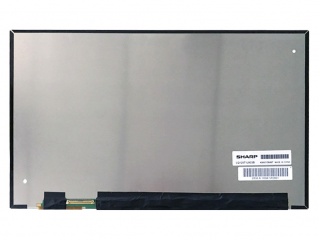

| PartNumber | LQ125T1JX03C |
| Znamka | Sharp |
| Velikost | 12.5 |
| Aplikacija | Laptop Pad & Tab |
| Resolucija | 2560×1440 |
| Sestava | Oxide TFT-LCD, LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | Sharp |

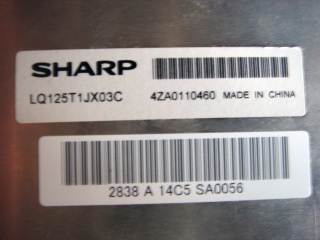

| panelni model | LQ125T1JX03C (SHP142C) |
| velikost plošče | 12.5" |
| vrsta plošče | Oxide TFT-LCD, LCM |
| resolucija | 2560(RGB)×1440, Quad-HD, 235PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 276.48(W)×155.52(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 282.68(W)×169.93(H) ×4.9(D) mm |
| površino | Glare (Haze 0%), Hard coating |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10) |
| način prikaza | IPS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| barve zaslona | 16.7M |
| tip svetilke | WLED , 15K hours , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| slog oblike | Slim (PCBA Bent, T≤3.0mm) |
| aplikacija | Laptop Pad & Tablet |
| signalni vmesnik | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
