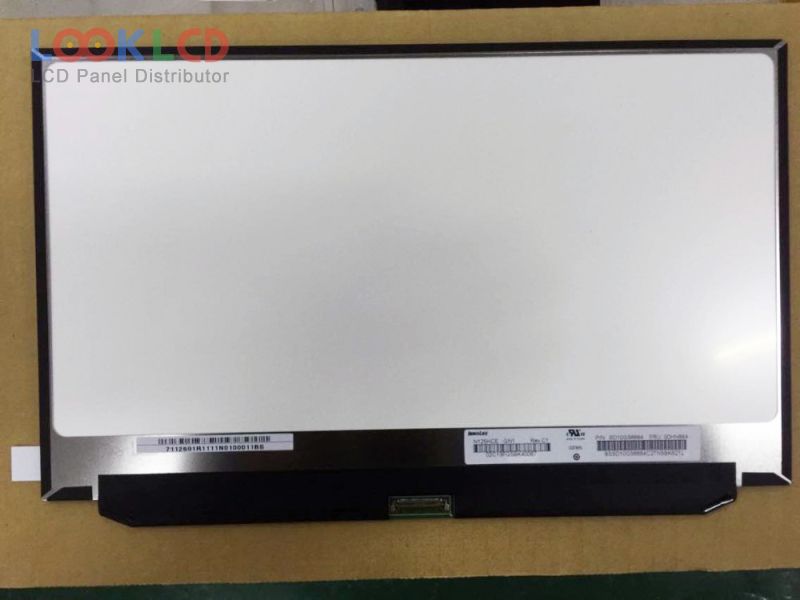

| PartNumber | N125HCE-GN1 |
| Znamka | Innolux |
| Velikost | 12.5 |
| Aplikacija | NBPC |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 700:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | INNOLUX |
| panelni model | N125HCE-GN1 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.5 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | AAS, Normally Black, Transmissive |
| aktivno območje | 276.48×155.52 mm |
| oris | 282.68×168.81×2.5 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Antiglare |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 16.2M (6-bit + Hi-FRC), CIE193150% |
| odzivni čas | 14/11 (Typ.)(Tr/Td) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (2 Lanes), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
