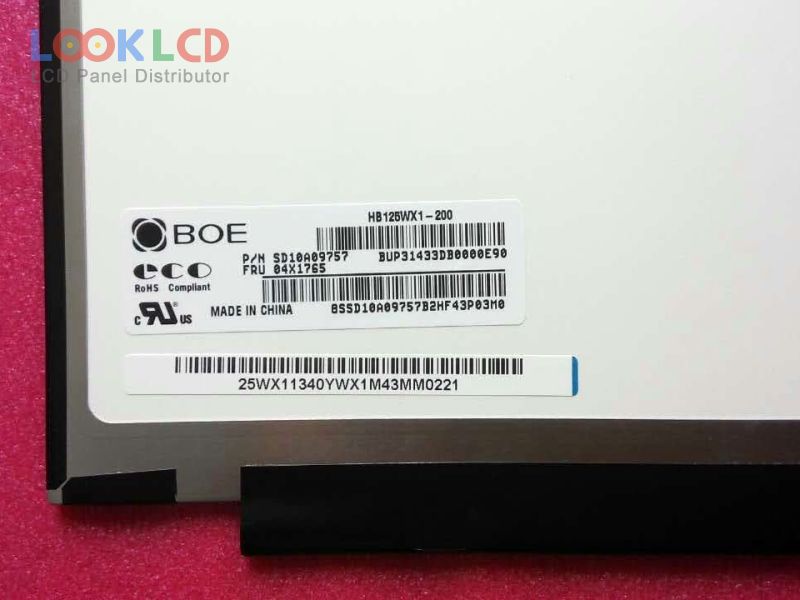

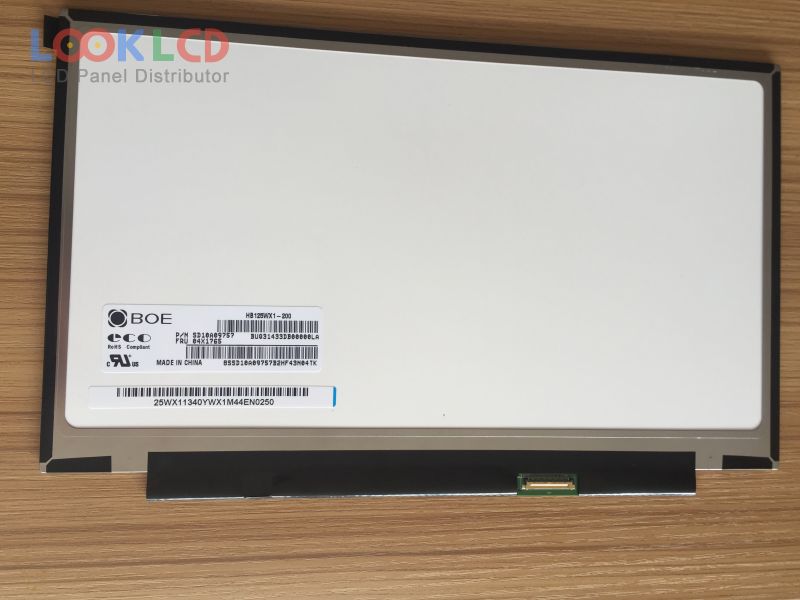

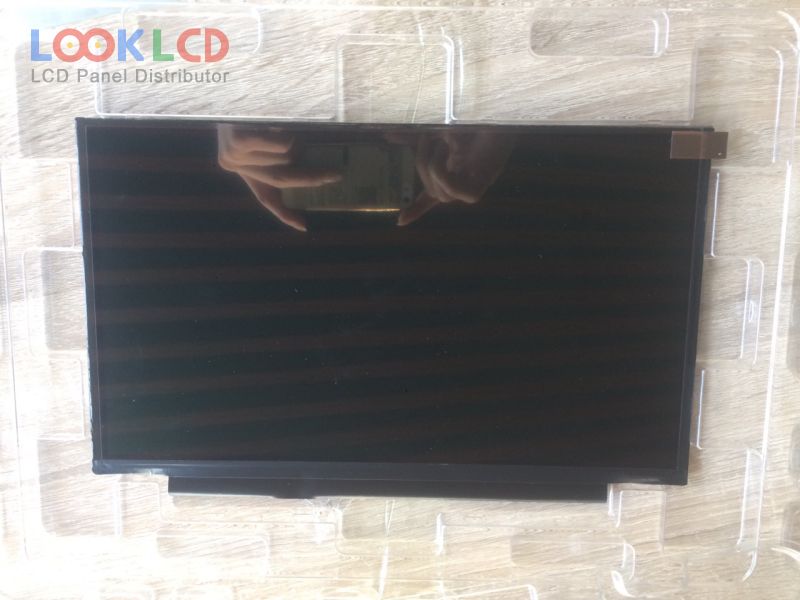

| PartNumber | HB125WX1-200 |
| Znamka | BOE |
| Velikost | 12.5 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | BOE |
| panelni model | HB125WX1-200 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.5 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 276.615×155.52 mm |
| oris | 290.5×181.4×3 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Antiglare |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 9S3PWLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (1 Lane), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
