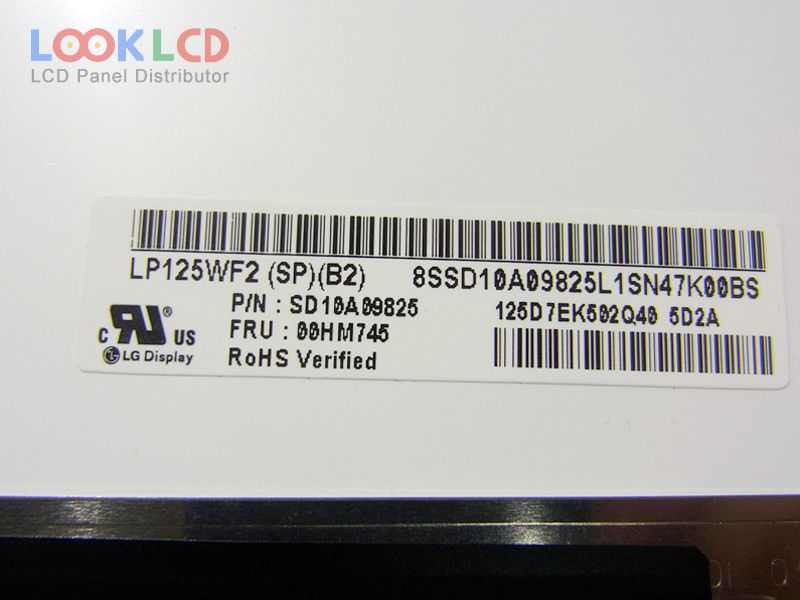

| PartNumber | LP125WF2-SPB2 |
| Znamka | LG Display |
| Velikost | 12.5 |
| Aplikacija | NBPC |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 700:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | LG Display |
| panelni model | LP125WF2-SPB2 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.5 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 276.48×155.52 mm |
| oris | 290.5×170.7×2.85 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Antiglare |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193150% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (2 Lanes), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
