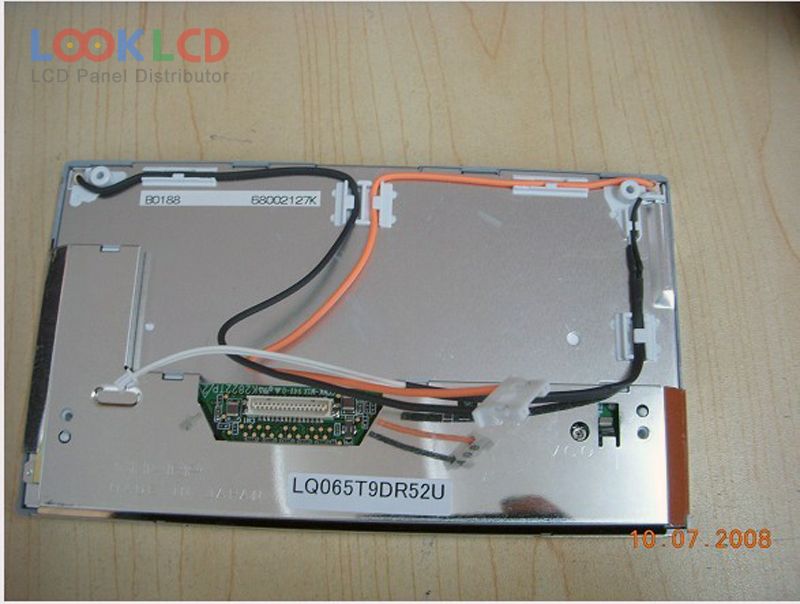

| PartNumber | LQ065T9DR52U |
| Znamka | SHARP |
| Velikost | 6.5 |
| Aplikacija | CNS |
| Resolucija | 400×240 |
| Sestava | LCM |
| Svetlost | 220 |
| CR | 60:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ065T9DR52U |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 6.5 inch |
| resolucija | 400(RGB)×240 , WQVGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno območje | 143.4×79.326 mm |
| oris | 155×89.2 mm |
| površino | Antiglare, Antireflection |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 60:1 (Min.)(Transmissive)5:1 (Typ.)(Reflective) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 10/25 (Typ.)(Tr/Td) |
| vidni kot | 50/50/40/45 (Typ.)(CR≥5)(L/R/U/D) |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 31 pins |
| vhodna napetost | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| aplikacija | CNS |
