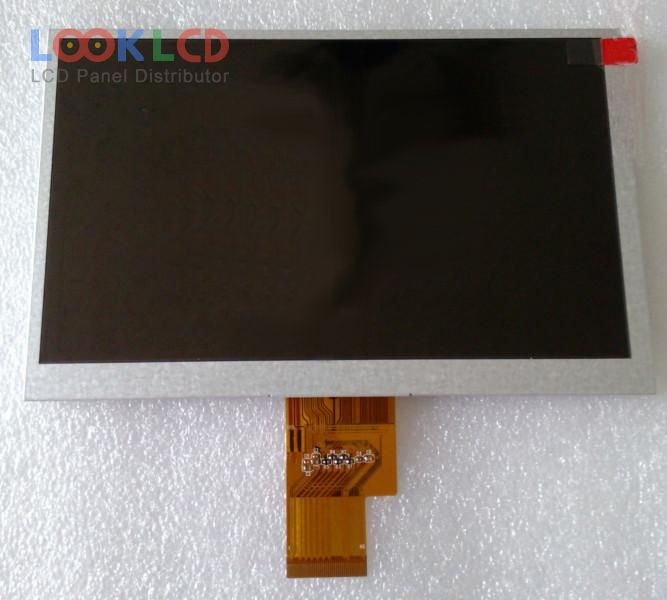

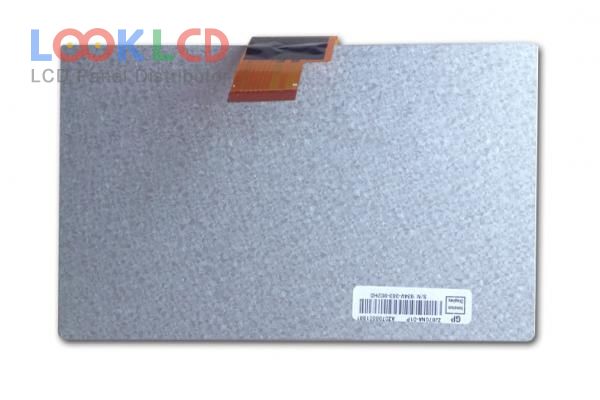

| PartNumber | ZJ070NA-01P |
| Znamka | Innolux |
| Velikost | 7.0 |
| Aplikacija | CNS |
| Resolucija | 1024×600 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 700:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CHIMEI INNOLUX |
| panelni model | ZJ070NA-01P |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 153.6×90 mm |
| oris | 165.75×105.39×5.1 mm |
| površino | Glare (Haze 0%) |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6/8-bit), 40 pins |
| vhodna napetost | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| aplikacija | CNS |
