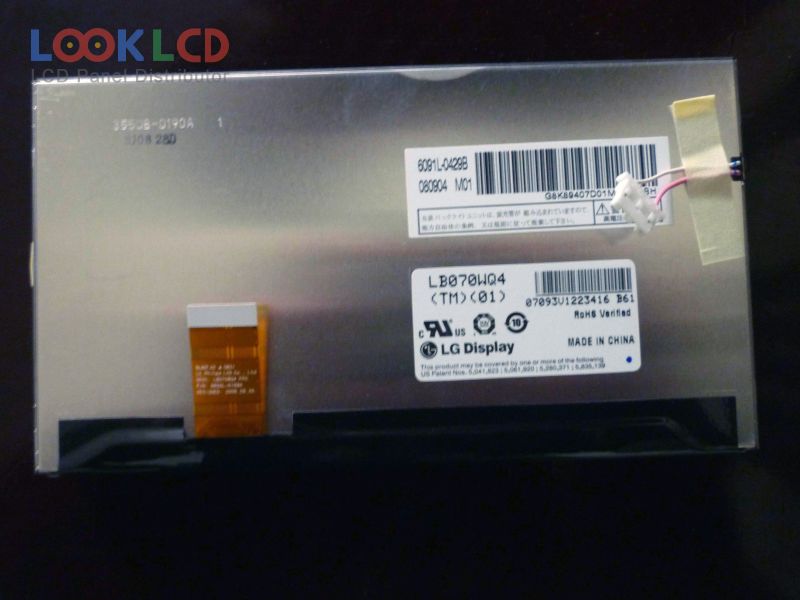

| PartNumber | LB070WQ4-TM01 |
| Znamka | LG Display |
| Velikost | 7.0 |
| Aplikacija | CNS |
| Resolucija | 480×234 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 400:1 |
| Barve | Full color |
| Osvetlitev ozadja | CCFL |
| Vmesnik | Analog |
| znamka plošče | LG.Philips LCD |
| panelni model | LB070WQ4-TM01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 480(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 156.24×82.368 mm |
| oris | 167×93×7.8 mm |
| površino | Antiglare |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | Full color , CIE193145% |
| odzivni čas | 50/75 (Max.)(Tr/Td) |
| vidni kot | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | TFT Specific Analog RGB, 30 pins |
| vhodna napetost | 3.3/5.0/18.5/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL) |
| aplikacija | CNS |
| LB070WQ4-TM01 | LG Display | 7.0 | 480×234 |
| LB070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD12 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD17 | LG Display | 7.0 | 800×480 |
| LB070WV3-SD01 | LG Display | 7.0 | 800×480 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD08 | LG Display | 7.0 | 800×480 |
| LB070WV7-TL01 | LG Display | 7.0 | 800×480 |
| C070VAN01.3 | AUO | 7.0 | 800×480 |
| C070VW04 VB | AUO | 7.0 | 800×480 |
| FG0700G3DSSWBGL4 | Data Image | 7.0 | 800×480 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LQ065T5GA01 | SHARP | 6.5 | 400×234 |
| LQ070T5DR02 | SHARP | 7.0 | 480×240 |
| LQ088H9DR01U | SHARP | 8.8 | 640×240 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
