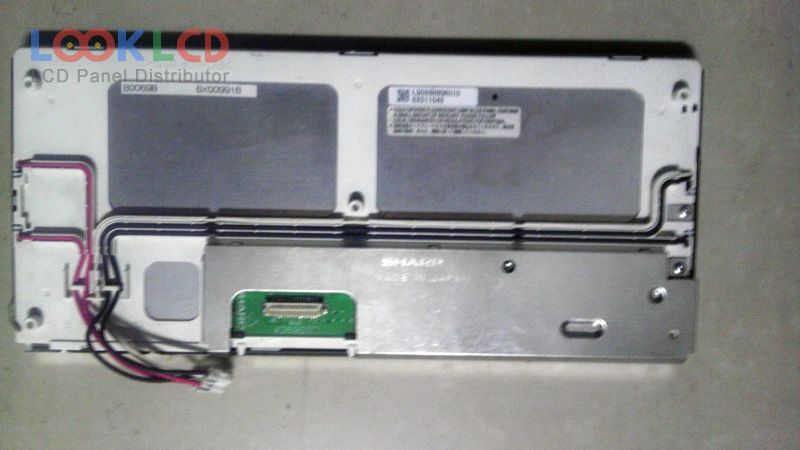

| PartNumber | LQ088H9DR01U |
| Znamka | SHARP |
| Velikost | 8.8 |
| Aplikacija | CNS |
| Resolucija | 640×240 |
| Sestava | LCM |
| Svetlost | 220 |
| CR | |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ088H9DR01U |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 8.8 inch |
| resolucija | 640(RGB)×240 , HVGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno območje | 209.28×78.48 mm |
| oris | 231.6×103.6 mm |
| površino | |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | |
| barve zaslona | 262K (6-bit) |
| odzivni čas | |
| vidni kot | |
| tip svetilke | 2 pcsCCFL |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 31 pins |
| rohs: | |
| aplikacija | CNS |
| A070FW01 | AUO | 7.0 | 480×234 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| LQ065T5AR05 | SHARP | 6.5 | 400×234 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ088H9DZ03 | SHARP | 8.8 | 640×240 |
| PW080XU4 | E Ink | 8.0 | 480×220 |
| TM060RDH01 | Tianma | 6.0 | 800×480 |
| TX15D02VM0CAA | KOE | 5.8 | 400×240 |
