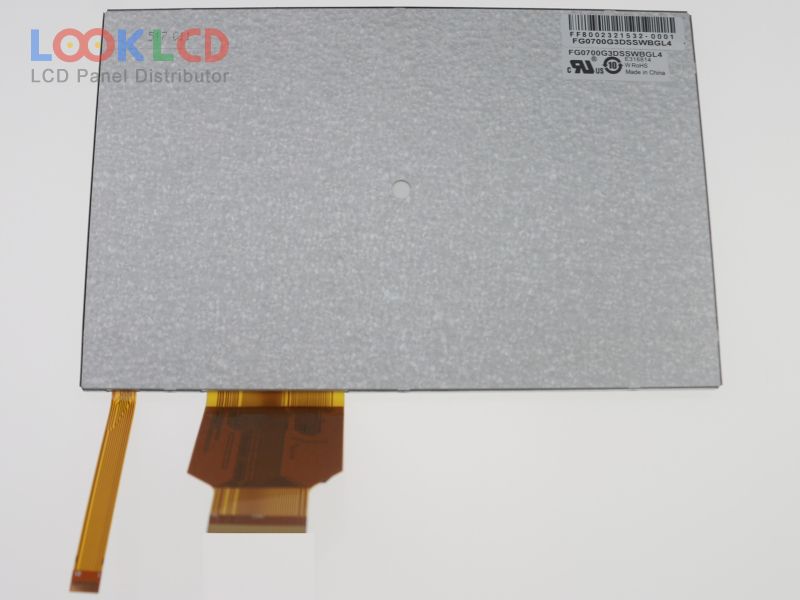

| PartNumber | FG0700G3DSSWBGL4 |
| Znamka | Data Image |
| Velikost | 7.0 |
| Aplikacija | CNS |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 900 |
| CR | 600:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | Data Image |
| panelni model | FG0700G3DSSWBGL4 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 152.4×91.44 mm |
| oris | 165×106.4 mm |
| površino | |
| svetlost | 900 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 5/15 (Typ.)(Tr/Td) |
| vidni kot | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 3S10PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | CNS |
