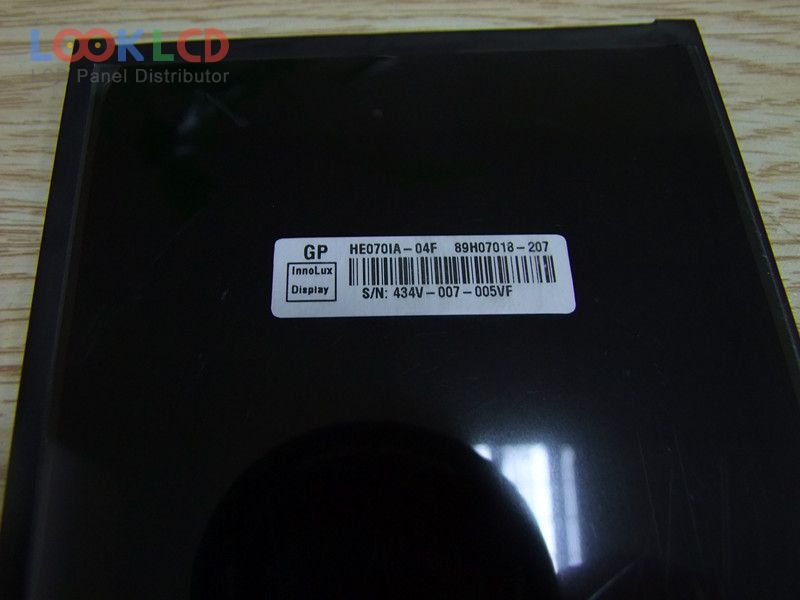

| PartNumber | HE070IA-04F |
| Znamka | Innolux |
| Velikost | 7.0 |
| Aplikacija | PAD |
| Resolucija | 800×1280 |
| Sestava | CELL |
| Svetlost | 0 |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No B/L |
| Vmesnik | LVDS |
| znamka plošče | CHIMEI INNOLUX |
| panelni model | HE070IA-04F |
| vrsta plošče | a-Si TFT-LCD , CELL |
| velikost plošče | 7.0 inch |
| resolucija | 800(RGB)×1280 , WXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 94.2×150.72 mm |
| oris | 101.5×159.52×0.82 mm |
| površino | Hard coating |
| globina stekla | 0.25+0.25 mm |
| transmisivnost | 4.96% (Typ.)(with Polarizer) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193160% |
| odzivni čas | 50 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| signalni vmesnik | LVDS (1 ch, 8-bit), 40 pins |
| vhodna napetost | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikacija | PAD |
