| PartNumber | CLAA070LC0FCT |
| Znamka | CPT |
| Velikost | 7.0 |
| Aplikacija | MP4 |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 400:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | CPT |
| panelni model | CLAA070LC0FCT |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 152.4×91.44 mm |
| oris | 165×104×6.3 mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 20 (Max.)(Tr+Td) |
| vidni kot | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |

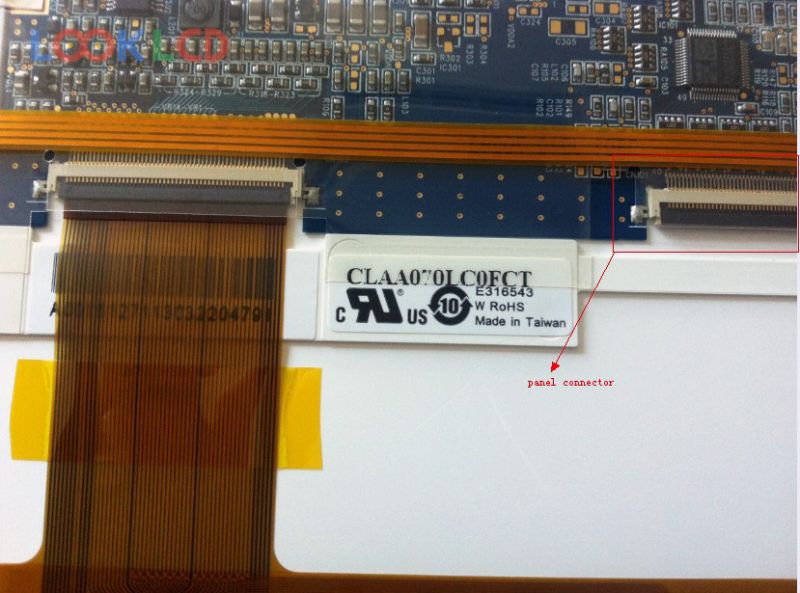

| signalni vmesnik | TTL (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | MP4 |
