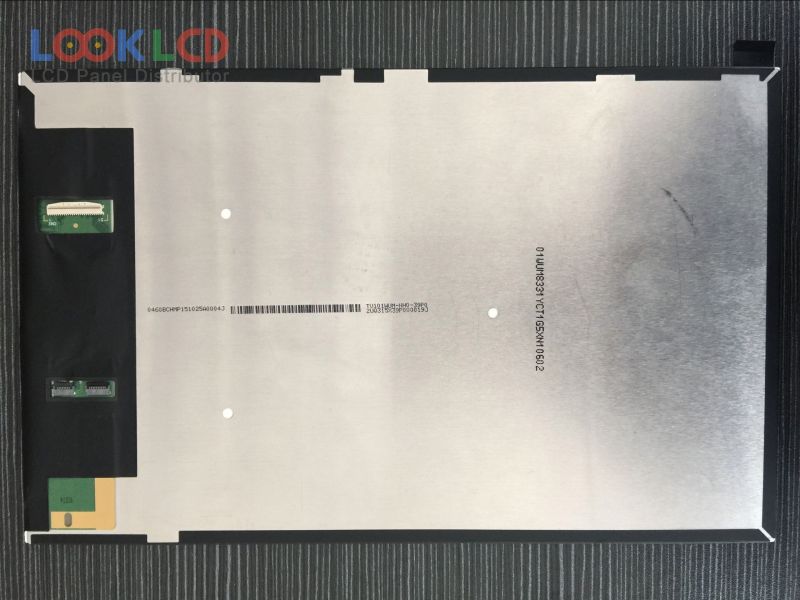

| PartNumber | TV101WUM-NH0 |
| Znamka | BOE |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 1200×1920 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 900:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka plošče | BOE |
| panelni model | TV101WUM-NH0 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1200(RGB)×1920 , WUXGA |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno območje | 135.36×216.576 mm |
| oris | 143×227.93 mm |
| površino | |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193170% |
| odzivni čas | 25 (Typ.)(Tr+Tf) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8S4PWLEDWithout Driver |
| signalni vmesnik | MIPI (4 data lanes), 39 pins |
| vhodna napetost | 3.3/3.8V (Typ.)(VDD/VBAT) |
| aplikacija | PAD |
