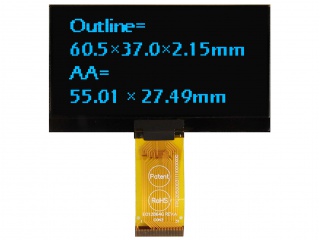

| PartNumber | WEO012864KS |
| Znamka | Winstar |
| Velikost | 2.7 |
| Aplikacija | Handheld & PDA Instr |
| Resolucija | 128×64 |
| Sestava | PM-OLED , OLED |
| Svetlost | |
| CR | |
| Barve | Mono(Blue) |
| Osvetlitev ozadja | self |
| Vmesnik | 8-bit |
| znamka plošče | Winstar |
| velikost plošče | 2.7" |
| resolucija | 128×64, 52PPI |
| prikazno območje | 61.41(W)×30.69(H) mm |
| velikost obrisa | 73(W)×41.86(H) ×2.15(D) mm |
| vidni kot | - |
| najboljši pogled na | Symmetry |
| barve zaslona | Mono(Blue) |
| pogostost | - |
| voznik ic | COG Built-in SSD1309ZC |
| teža plošče | - |
| signalni vmesnik | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 31 pins FPC |
| vhodna napetost | 3.0V (Typ.) |
| panelni model | WEO012864KS |
| vrsta plošče | PM-OLED , OLED |
| slikovnih pik | Rectangle |
| odprtina okvirja | 63.41(W)×32.69(H) mm |
| površino | - |
| način prikaza | - |
| odzivni čas | - |
| tip svetilke | self |
| zaslon na dotik | Without |
| aplikacija | Handheld & PDA Instruments & Meters |
