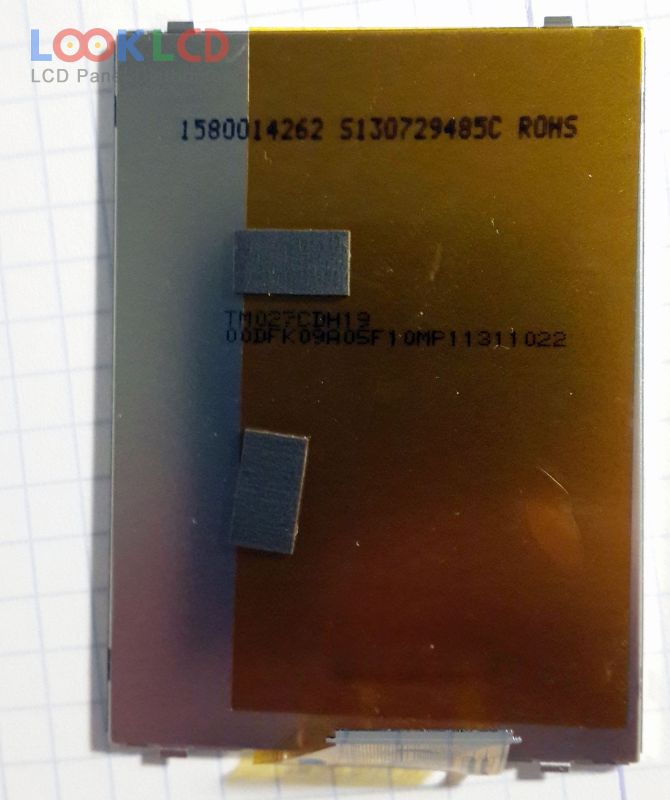

| PartNumber | TM027CDH19 |
| Znamka | Tianma |
| Velikost | 2.7 |
| Aplikacija | DSC |
| Resolucija | 320×240 |
| Sestava | LCM |
| Svetlost | |
| CR | 400:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | Serial RGB |
| znamka plošče | TIANMA |
| panelni model | TM027CDH19 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 2.7 inch |
| resolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 54×40.5 mm |
| površino | |
| svetlost | |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193145% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | WLED |
| signalni vmesnik | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | DSC |
