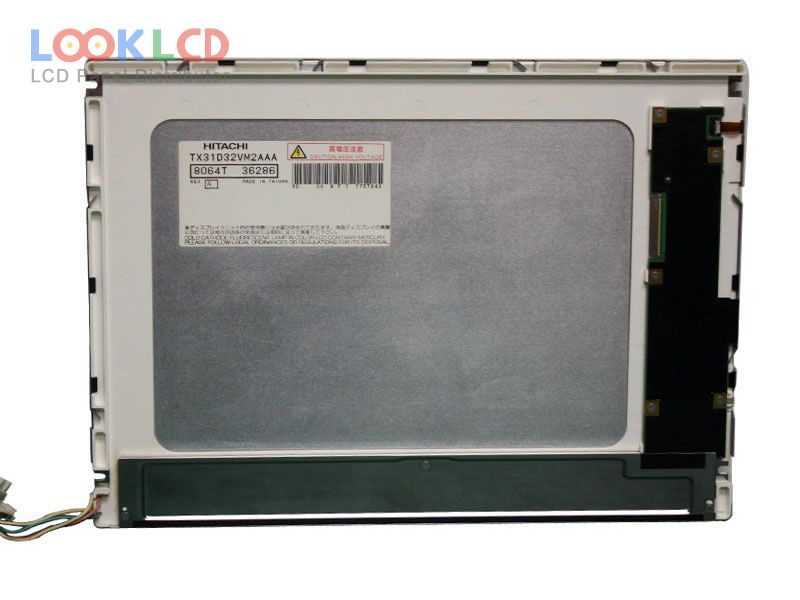

| PartNumber | TX31D32VM2AAA |
| Znamka | KOE |
| Velikost | 12.1 |
| Aplikacija | IA |
| Resolucija | 800×600 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |

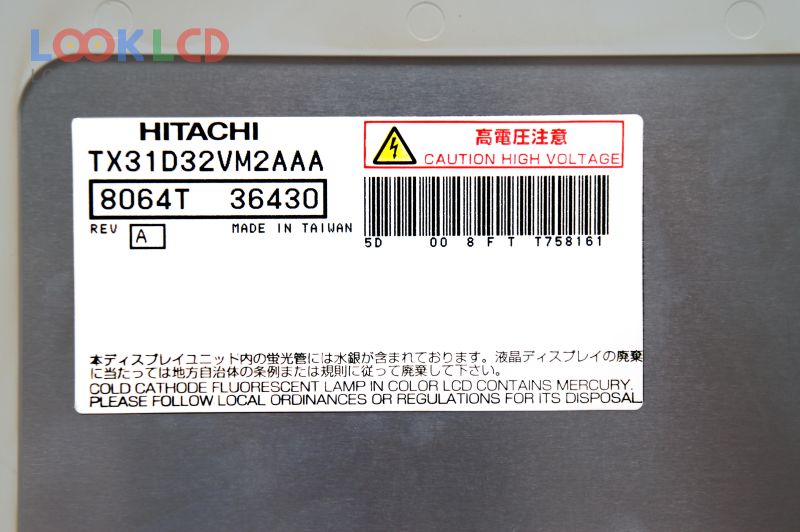

| znamka plošče | HITACHI |
| panelni model | TX31D32VM2AAA |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.1 inch |
| resolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 246×184.5 mm |
| oris | 280×210×13.5 mm |
| površino | Hard coating (3H) |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 15/10 (Typ.)(Tr/Td) |
| vidni kot | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
