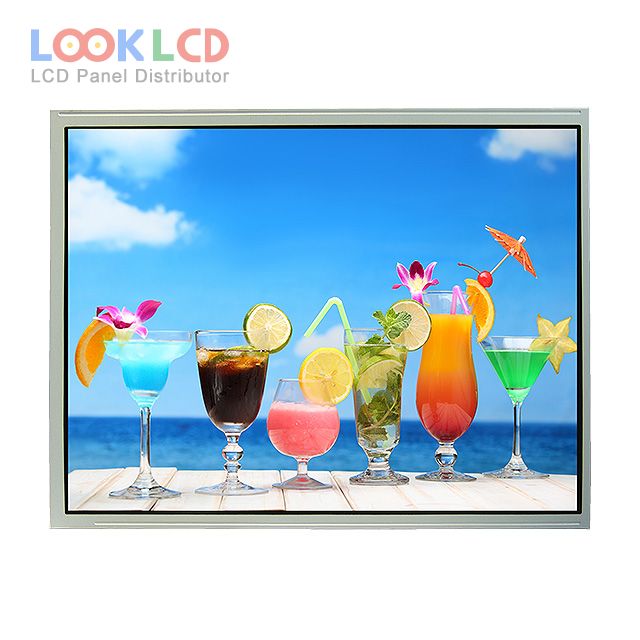

| PartNumber | TCG121XGLPAPNN-AN20 |
| Znamka | Kyocera |
| Velikost | 12.1 |
| Aplikacija | IA |
| Resolucija | 1024×768 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 750:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | Kyocera |
| panelni model | TCG121XGLPAPNN-AN20 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.1 inch |
| resolucija | 1024(RGB)×768 , XGA |
| način prikaza | AWV, Normally Black, Transmissive |
| aktivno območje | 245.76×184.32 mm |
| oris | 260.5×203.4×10.8 mm |
| površino | Antiglare |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 750:1 (Typ.) |
| barve zaslona | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| odzivni čas | 18/12 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 6/8-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
