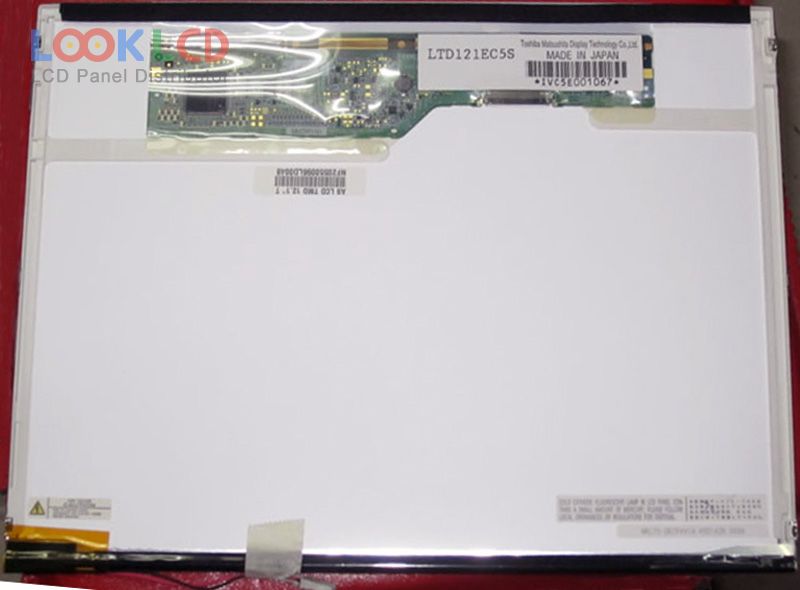

| PartNumber | LTD121EC5S |
| Znamka | TOSHIBA |
| Velikost | 12.1 |
| Aplikacija | NBPC |
| Resolucija | 1024×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 250:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | Toshiba Matsushita |
| panelni model | LTD121EC5S 6 Compatible model |
| vrsta plošče | LTPS TFT-LCD , LCM |
| velikost plošče | 12.1 inch |
| resolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 245.76×184.32 mm |
| oris | 261×199×5 mm |
| površino | |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 250:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 25/25 (Max.)(Tr/Td) |
| vidni kot | 30/30/10/20 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| rohs: | |
| aplikacija | NBPC |
