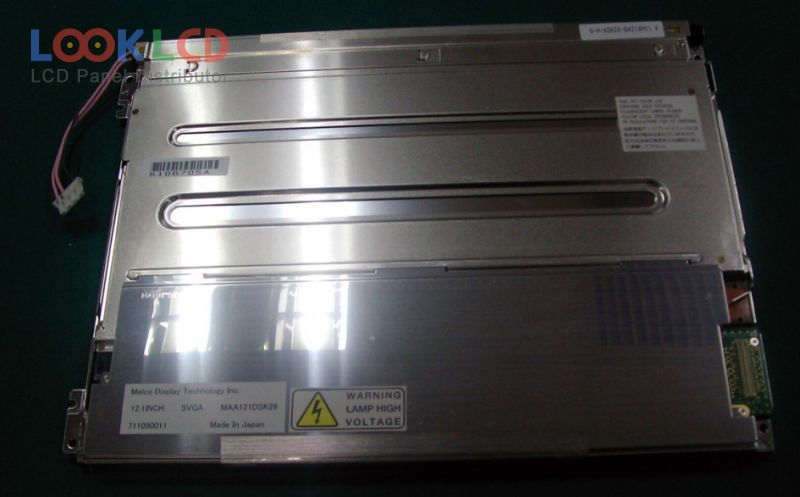

| PartNumber | MAA121DSK26 |
| Znamka | Mitsubishi |
| Velikost | 12.1 |
| Aplikacija | IA |
| Resolucija | 800×600 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 300:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | Mitsubishi MDTI |
| panelni model | MAA121DSK26 2 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.1 inch |
| resolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 246×184.5 mm |
| oris | 280×210×12.5 mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 300:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 20/30 (Typ.)(Tr/Td) |
| vidni kot | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | CMOS (1 ch, 6-bit), 41 pins |
| vhodna napetost | 3.3/5.0V (Typ.)(VCC) |
| aplikacija | IA |
