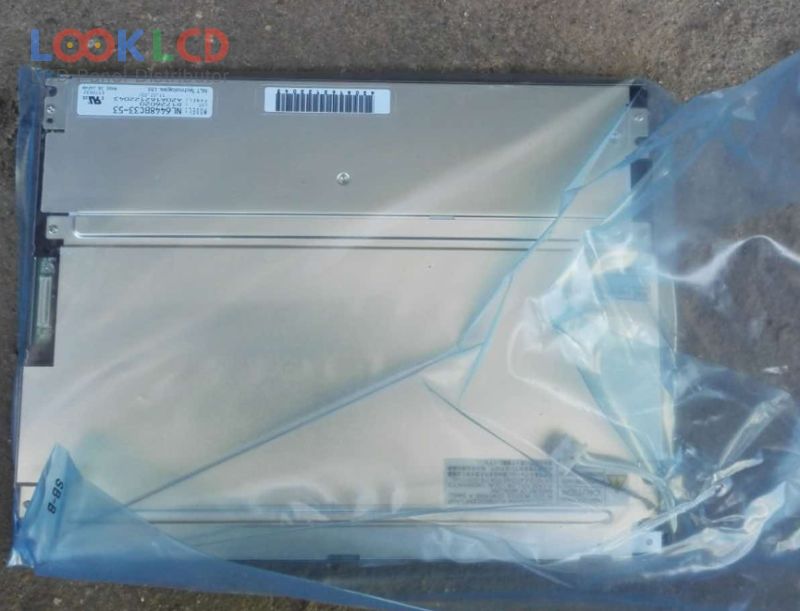

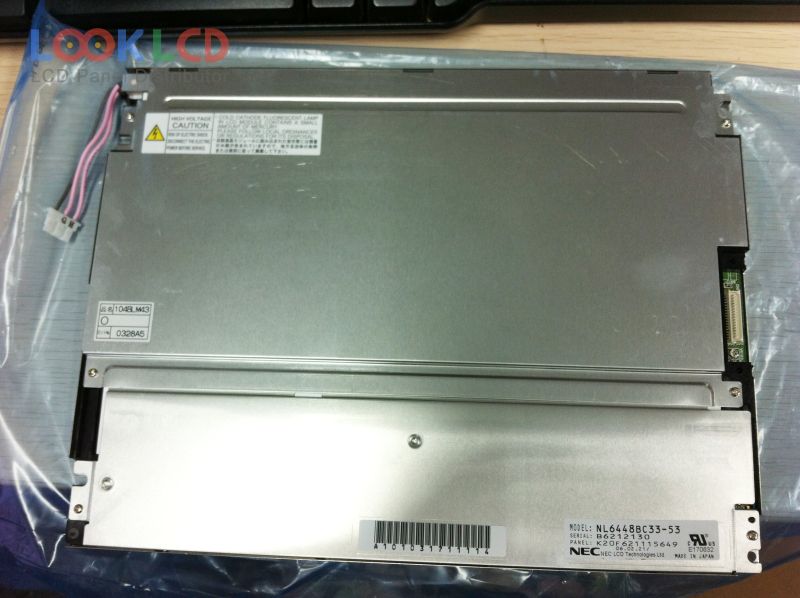

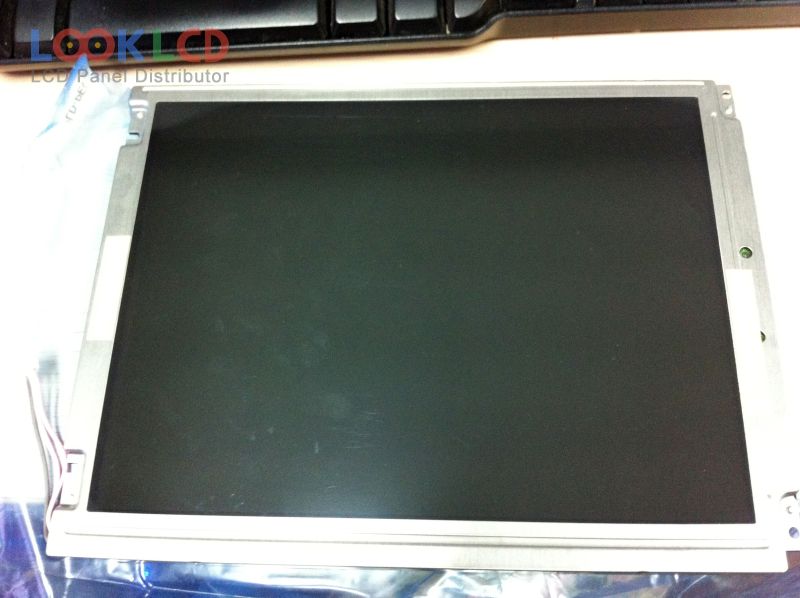

| PartNumber | NL6448BC33-53 |
| Znamka | NLT |
| Velikost | 10.4 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 380 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | NEC |
| panelni model | NL6448BC33-53 3 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.4 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | SA-SFT, Normally Black, Transmissive |
| aktivno območje | 211.2×158.4 mm |
| oris | 243×185.1×11 mm |
| površino | Clear, Hard coating (3H) |
| svetlost | 380 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193140% |
| odzivni čas | 18/16 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | CMOS (1 ch, 6-bit), 31 pins |
| vhodna napetost | 3.3/5.0V (Typ.)(VCC) |
| aplikacija | IA |
