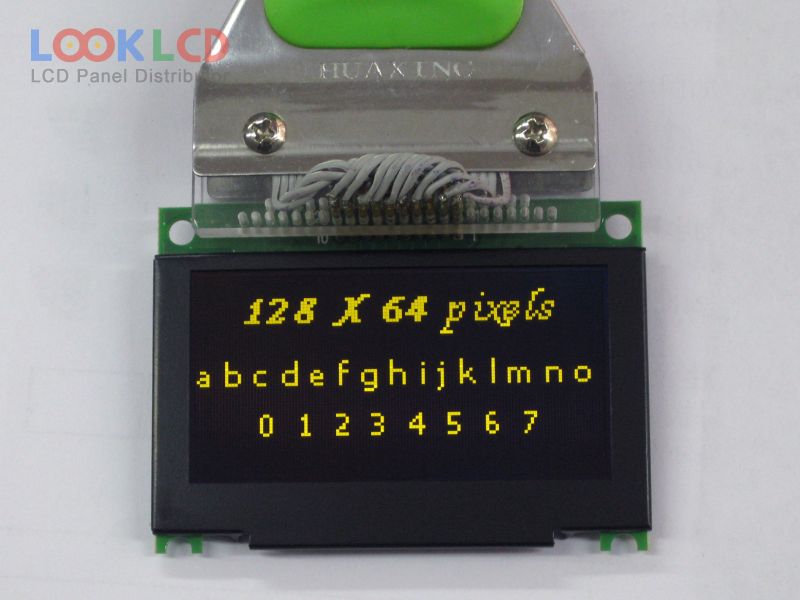

| PartNumber | HGS128645-Y-EH-LV |
| Znamka | Other |
| Velikost | 2.7 |
| Aplikacija | IA |
| Resolucija | 128×64 |
| Sestava | OLED |
| Svetlost | 100 |
| CR | 2000:1 |
| Barve | Mono(Yellow) |
| Osvetlitev ozadja | self |
| Vmesnik | CPU/SPI |
| znamka plošče | TSINGTEK |
| panelni model | HGS128645-Y-EH-LV |
| vrsta plošče | PM-OLED , OLED |
| velikost plošče | 2.7 inch |
| resolucija | 128×64 |
| aktivno območje | 61.41×30.69 mm |
| oris | 75×53.5×7 mm |
| površino | |
| svetlost | 100 cd/m² (Typ.) |
| kontrastno razmerje | 2000 : 1 (Min.) |
| barve zaslona | Mono(Yellow) |
| vidni kot | 80/80/80/80 (Min.)(L/R/U/D) |
| voznik ic | Built-in SSD1325 |
| signalni vmesnik | 8-bit 6800/8080 parallel, SPI, 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| rohs: | |
| aplikacija | IA |
