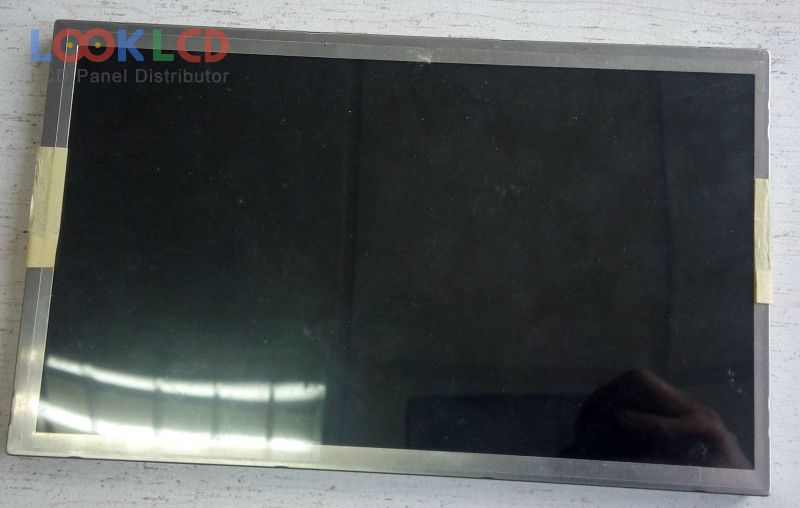

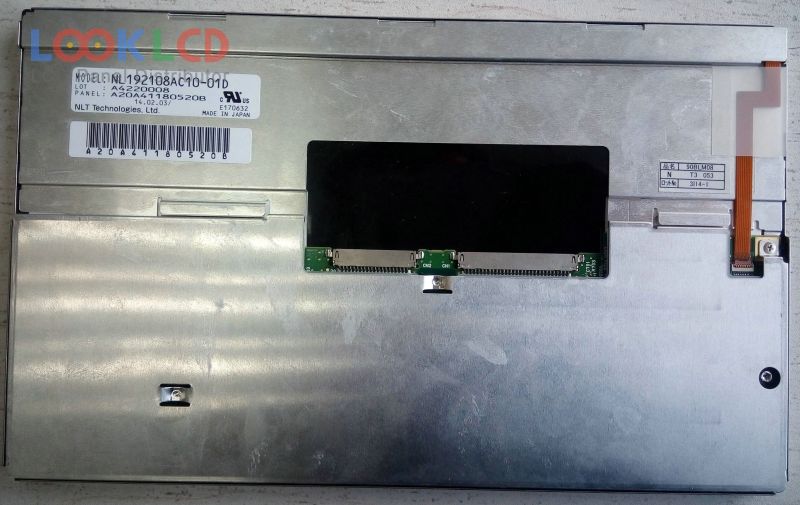

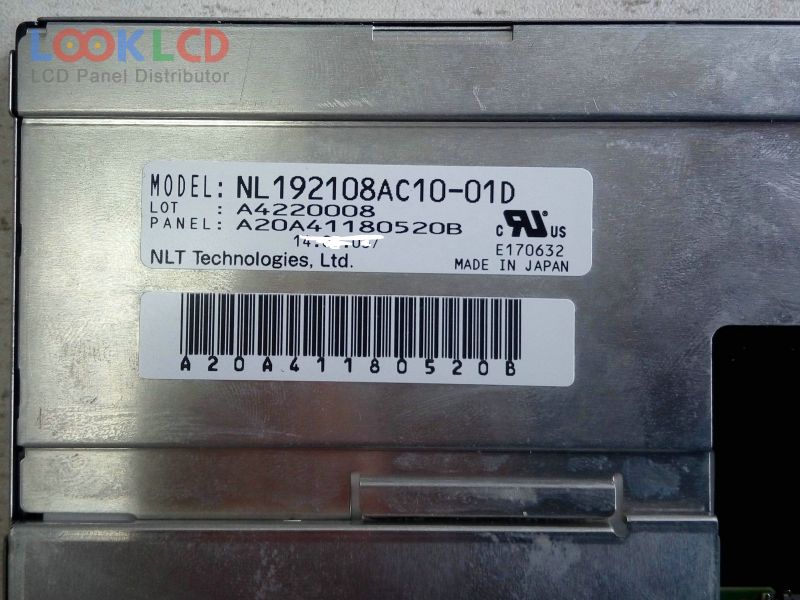

| PartNumber | NL192108AC10-01D |
| Znamka | NLT |
| Velikost | 9.0 |
| Aplikacija | IA |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 700:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | NLT |
| panelni model | NL192108AC10-01D |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 9.0 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | UA-SFT, Normally Black, Transmissive |
| aktivno območje | 198.72×111.78 mm |
| oris | 214.6×130×9.6 mm |
| površino | Antiglare (Haze 41%), Hard coating (2H), Antireflection |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| odzivni čas | 13/12 (Typ.)(Tr/Td) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (2 ch, 6/8-bit), 50 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
