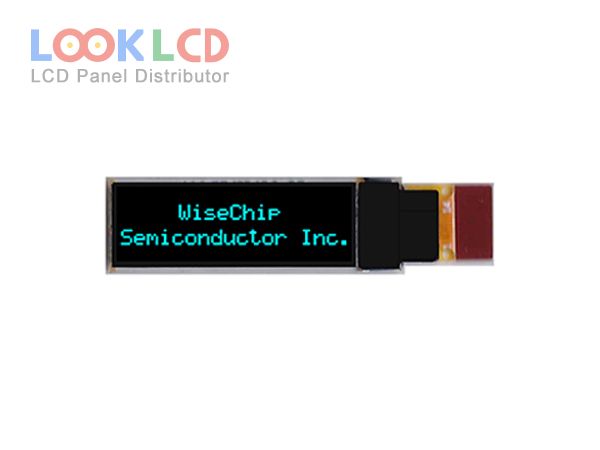

| PartNumber | UG-9616TLBBG01 |
| Znamka | WiseChip |
| Velikost | 0.84 |
| Aplikacija | IA |
| Resolucija | 96×16 |
| Sestava | OLED |
| Svetlost | 150 |
| CR | 10000:1 |
| Barve | Mono(Blue) |
| Osvetlitev ozadja | self |
| Vmesnik | I²C |
| znamka plošče | WiseChip |
| panelni model | UG-9616TLBBG01 |
| vrsta plošče | PM-OLED , OLED |
| velikost plošče | 0.84 inch |
| resolucija | 96×16 |
| aktivno območje | 21.104×3.504 mm |
| oris | 29.1×9.2×1.4 mm |
| površino | |
| svetlost | 150 cd/m² (Typ.) |
| kontrastno razmerje | 10000 : 1 (Typ.) |
| barve zaslona | Mono(Blue) (1-bit) |
| vidni kot | |
| voznik ic | COG Built-in SSD1306 |
| signalni vmesnik | I²C, 14 pins |
| vhodna napetost | 2.8/7.25V (Typ.)(VDD/VCC) |
| aplikacija | IA |
