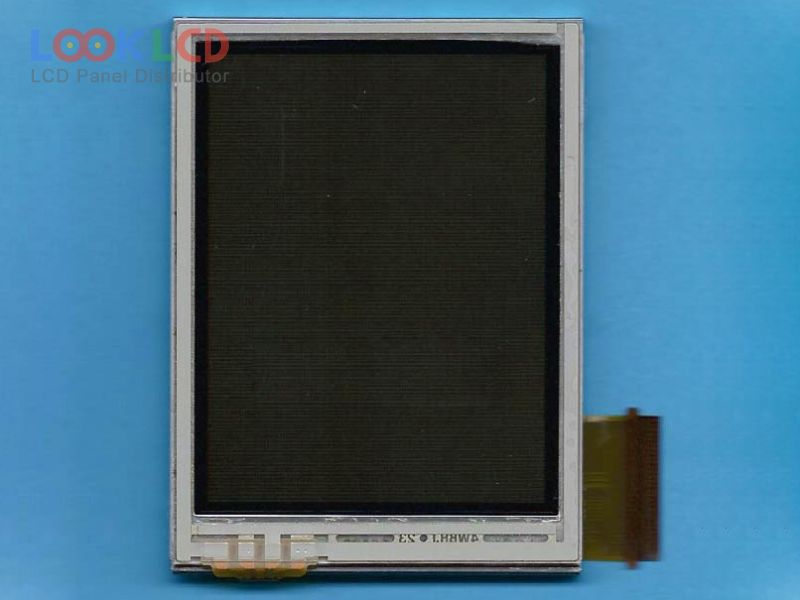

| PartNumber | LTP280QV-E01 |
| Znamka | Samsung |
| Velikost | 2.8 |
| Aplikacija | MPH |
| Resolucija | 240×320 |
| Sestava | LCM |
| Svetlost | 110 |
| CR | 150:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SAMSUNG |
| panelni model | LTP280QV-E01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 2.8 inch |
| resolucija | 240(RGB)×320 , QVGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno območje | 43.2×57.6 mm |
| oris | 52.9×71.7×4.75 mm |
| površino | Hard coating (3H) |
| svetlost | 110 cd/m² (Typ.) |
| kontrastno razmerje | 150:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| barve zaslona | 262K (6-bit), CIE193130% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 50/40/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 6S1PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 61 pins |
| vhodna napetost | 3.3/5.0/15/-10V (Typ.)(DVDD/AVDD/VON/VOFF) |
| aplikacija | MPH |
