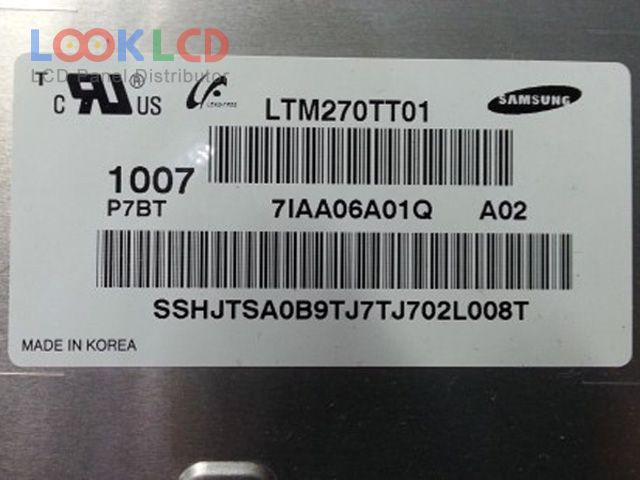

| PartNumber | LTM270TT01 |
| Znamka | Samsung |
| Velikost | 27.0 |
| Aplikacija | DMPC |
| Resolucija | 2048×1152 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTM270TT01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 27.0 inch |
| resolucija | 2048(RGB)×1152 , WDXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 597.5×336.1 mm |
| oris | 631.4×370 mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193192% |
| odzivni čas | 5 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | CCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (2 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
