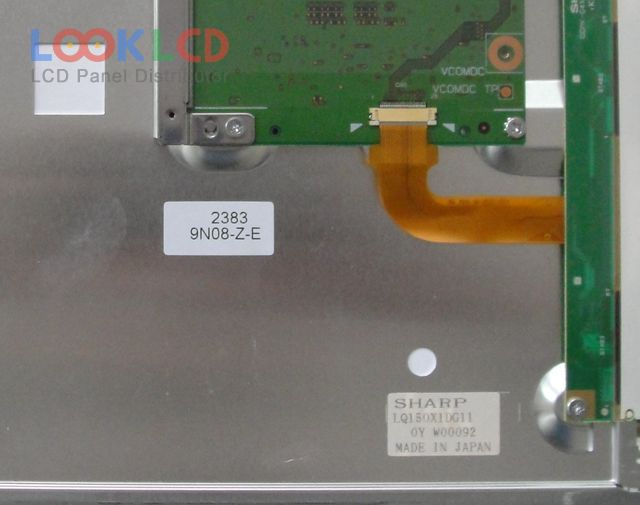

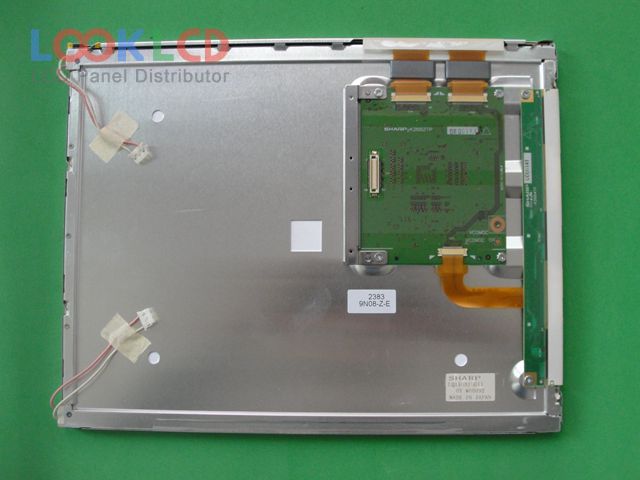

| PartNumber | LQ150X1DG11 |
| Znamka | SHARP |
| Velikost | 15.0 |
| Aplikacija | DMPC |
| Resolucija | 1024×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 300:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ150X1DG11 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.0 inch |
| resolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 304.128×228.096 mm |
| oris | 331.3×257.9 mm |
| površino | Antiglare (Haze 28%), Hard coating (2H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 300:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 10/35 (Typ.)(Tr/Td) |
| vidni kot | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | Parallel RGB (2 ch, 6-bit), 60 pins |
| vhodna napetost | 5.0V (Typ.)(VCC) |
| aplikacija | DMPC |
