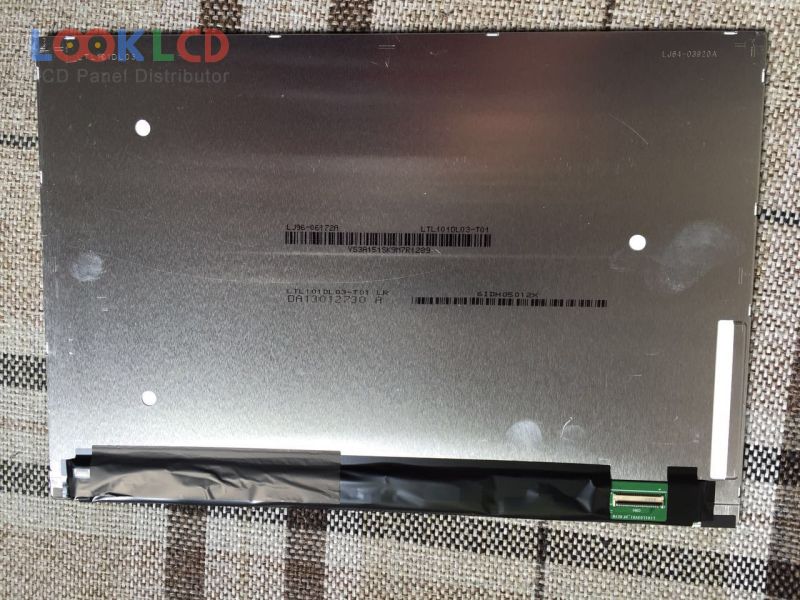

| PartNumber | LTL101DL03-T01 |
| Znamka | Samsung |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 2560×1600 |
| Sestava | LCM |
| Svetlost | 370 |
| CR | 800:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | SAMSUNG |
| panelni model | LTL101DL03-T01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 2560RG(BW)×1600 , WQXGA |
| način prikaza | PLS, Normally Black, Transmissive |
| aktivno območje | 216.576×135.36 mm |
| oris | 232.22×156.92×5.2 mm |
| površino | Glare (Haze 0%), Hard coating (2H) |
| svetlost | 370 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 16.2M (6-bit + FRC) |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 7S6PWLEDEmbedded (LED Driver) |

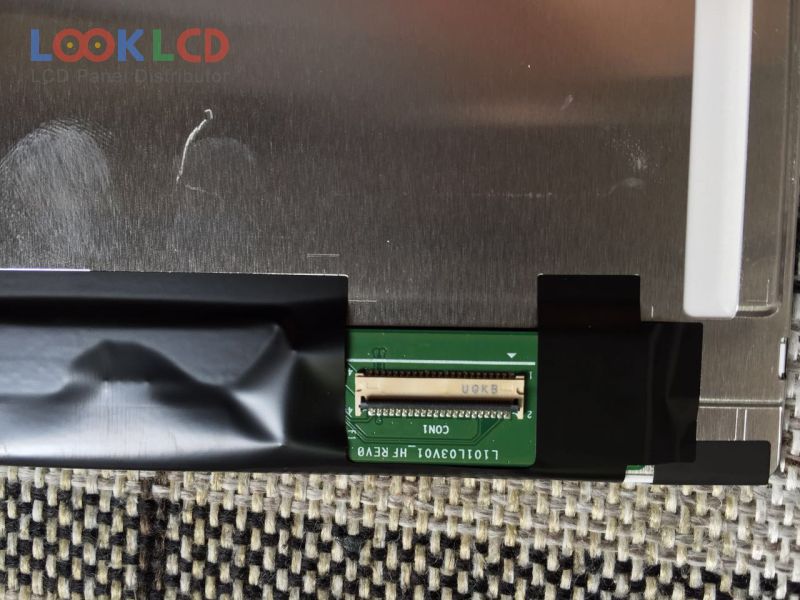

| signalni vmesnik | eDP (4 Lanes), 45 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
