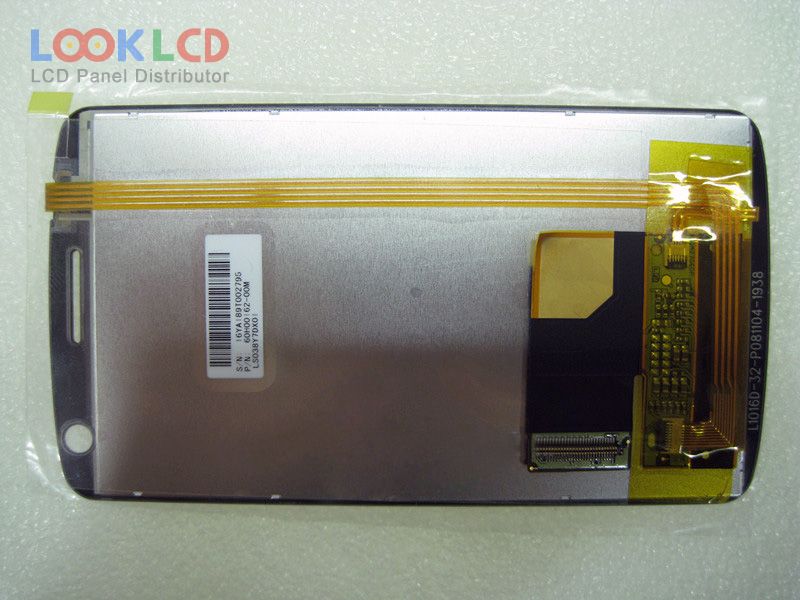

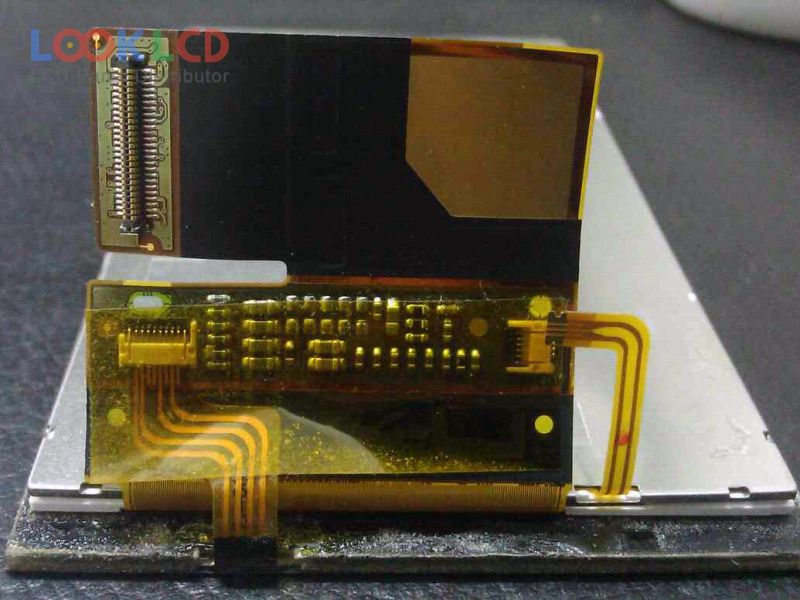

| PartNumber | LS038Y7DX01 |
| Znamka | SHARP |
| Velikost | 3.8 |
| Aplikacija | MPH |
| Resolucija | 480×800 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LS038Y7DX01 |
| vrsta plošče | CG-Silicon , LCM |
| velikost plošče | 3.8 inch |
| resolucija | 480(RGB)×800 , WVGA |
| način prikaza | Normally Black, Transflective |
| aktivno območje | 49.68×82.8 mm |
| oris | 54.6×93 mm |
| površino | |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.)(Transmissive)12:1 (Typ.)(Reflective) |
| barve zaslona | 262K (6-bit), CIE193170% |
| odzivni čas | 40/40 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 7S1PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| vhodna napetost | 3.85/1.8V (Typ.)(VDC/VDDIO) |
| rohs: | |
| aplikacija | MPH |
