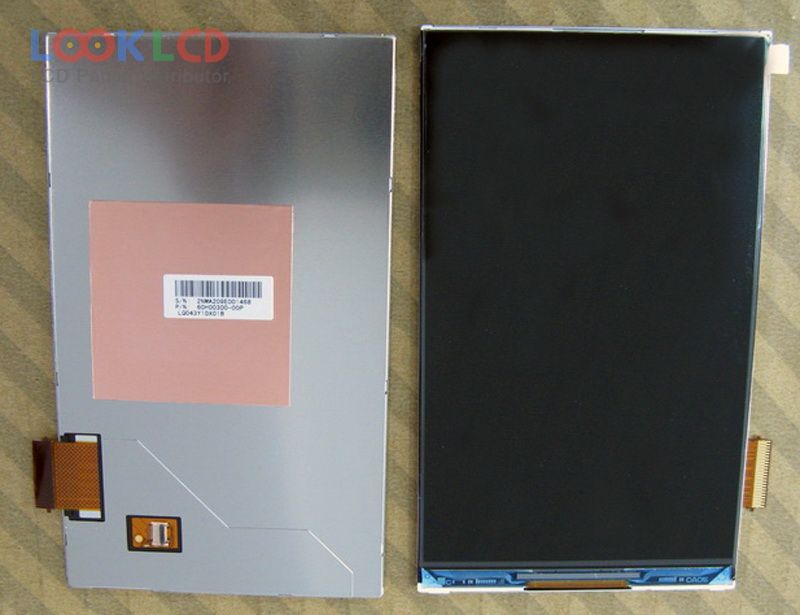

| PartNumber | LQ043Y1DX01B |
| Znamka | SHARP |
| Velikost | 4.3 |
| Aplikacija | MPH |
| Resolucija | 480×800 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 900:1 |
| Barve | 65K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ043Y1DX01B 3 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 4.3 inch |
| resolucija | 480(RGB)×800 , WVGA |
| način prikaza | ASV, Normally Black, Transmissive |
| aktivno območje | 56.16×93.6 mm |
| oris | 62.46×105.9 mm |
| površino | Hard coating (3H) |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) |
| barve zaslona | 65K , CIE193172% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8S1PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB, 45 pins |
| vhodna napetost | 3.0/2.6V (Typ.)(VCI/VDDIO) |
| aplikacija | MPH |
