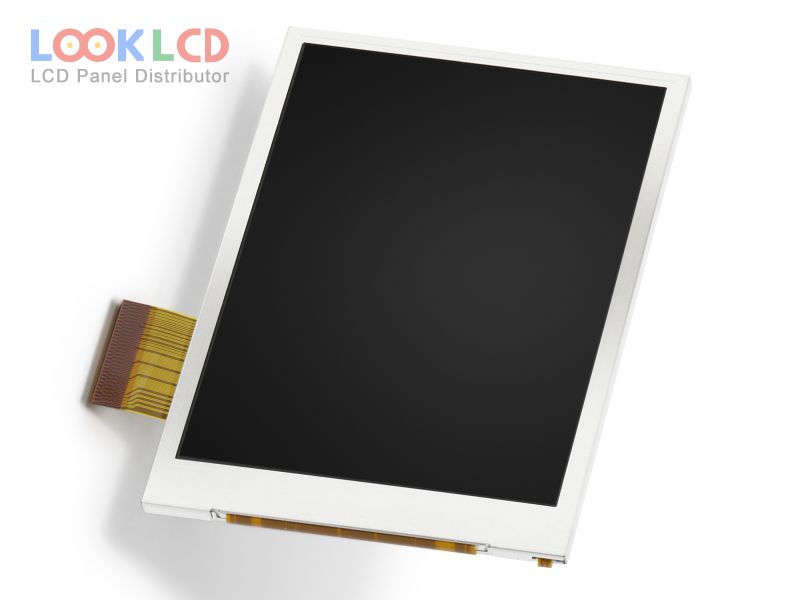

| PartNumber | LS037V7DW06 |
| Znamka | SHARP |
| Velikost | 3.7 |
| Aplikacija | HHP |
| Resolucija | 480×640 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 900:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LS037V7DW06 |
| vrsta plošče | CG-Silicon , LCM |
| velikost plošče | 3.7 inch |
| resolucija | 480(RGB)×640 , VGA |
| način prikaza | ASV, Normally Black, Transflective |
| aktivno območje | 56.16×74.88 mm |
| oris | 65×89.2×3.6 mm |
| površino | Antiglare |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.)(Transmissive) |
| barve zaslona | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| odzivni čas | 15/20 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6S1PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit) + SPI, 61 pins |
| vhodna napetost | 5.5/1.8V (Typ.)(VDD5/VCI) |
| aplikacija | HHP |
