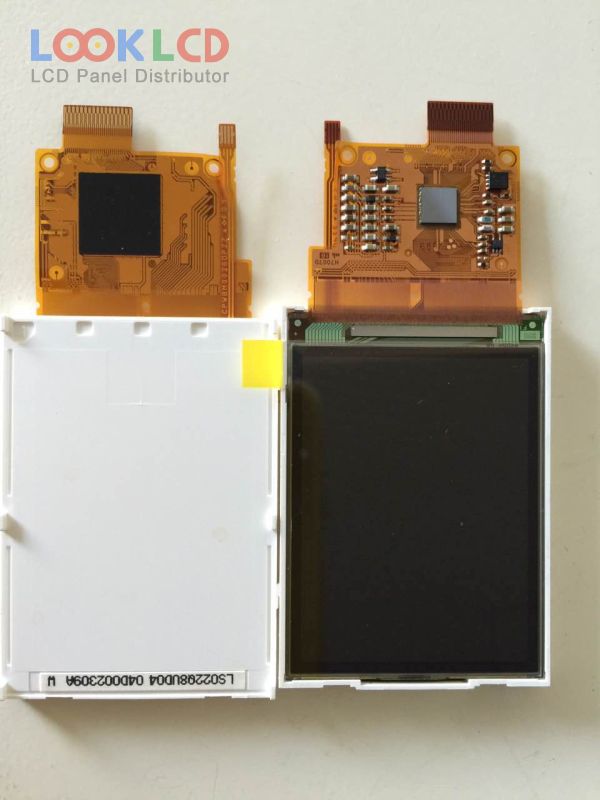

| PartNumber | LS022Q8UD04 |
| Znamka | SHARP |
| Velikost | 2.2 |
| Aplikacija | MPH |
| Resolucija | 240×320 |
| Sestava | LCM |
| Svetlost | 135 |
| CR | 100:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | CPU |
| znamka plošče | SHARP |
| panelni model | LS022Q8UD04 |
| vrsta plošče | CG-Silicon , LCM |
| velikost plošče | 2.2 inch |
| resolucija | 240(RGB)×320 , QVGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno območje | 33.84×45.12 mm |
| oris | 41×88.37 mm |
| površino | |
| svetlost | 135 cd/m² (Typ.) |
| kontrastno razmerje | 100:1 (Typ.)(Transmissive) |
| barve zaslona | 262K |
| odzivni čas | 13/35 (Typ.)(Tr/Td) |
| vidni kot | 40/40/40/45 (Typ.)(CR≥3)(L/R/U/D) |
| tip svetilke | 4S1PWLEDWithout Driver |
| signalni vmesnik | CPU, 33 pins |
| vhodna napetost | 3.0V (Typ.)(VDD) |
| aplikacija | MPH |
