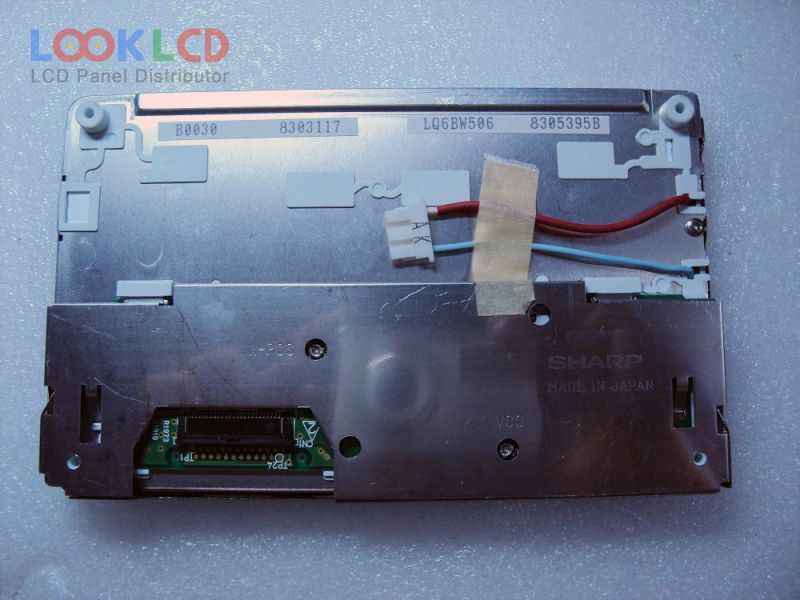

| PartNumber | LQ6BW506 |
| Znamka | SHARP |
| Velikost | 5.8 |
| Aplikacija | CNS |
| Resolucija | 400×234 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 60:1 |
| Barve | |
| Osvetlitev ozadja | CCFL |
| Vmesnik | Analog |
| znamka plošče | SHARP |
| panelni model | LQ6BW506 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.8 inch |
| resolucija | 400(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 127.2×71.8 mm |
| oris | 145×89 mm |
| površino | Antiglare, Antireflection |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 60:1 (Min.) |
| barve zaslona | |
| odzivni čas | 30/50 (Typ.)(Tr/Td) |
| vidni kot | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | Analog RGB + Composite Video (NTSC/PAL), 24 pins |
| vhodna napetost | 5.3/13.0/-16.0V (Typ.)(VSH/VGH/VGL) |
| aplikacija | CNS |
