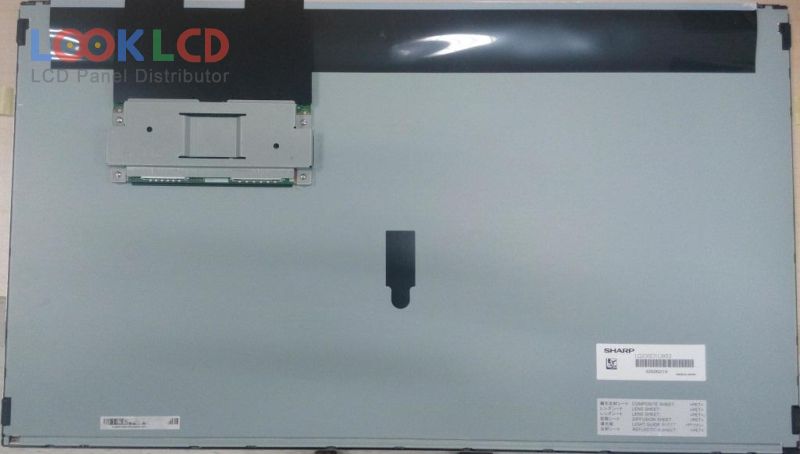

| PartNumber | LQ235D1LW03 |
| Znamka | SHARP |
| Velikost | 23.6 |
| Aplikacija | IA |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 5000:1 |
| Barve | 1.07B |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | SHARP |
| panelni model | LQ235D1LW03 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 23.6 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | UV2A, Normally Black, Transmissive |
| aktivno območje | 521.28×293.22 mm |
| oris | 554.8×319×21.4 mm |
| površino | Antiglare (Haze 2%), Hard coating (3H) |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 5000:1 (Typ.) |
| barve zaslona | 1.07B (8-bit + Hi-FRC), CIE193172% |
| odzivni čas | 4 (Typ.)(G to G) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 120Hz |
| tip svetilke | 13S4PWLEDWithout Driver |

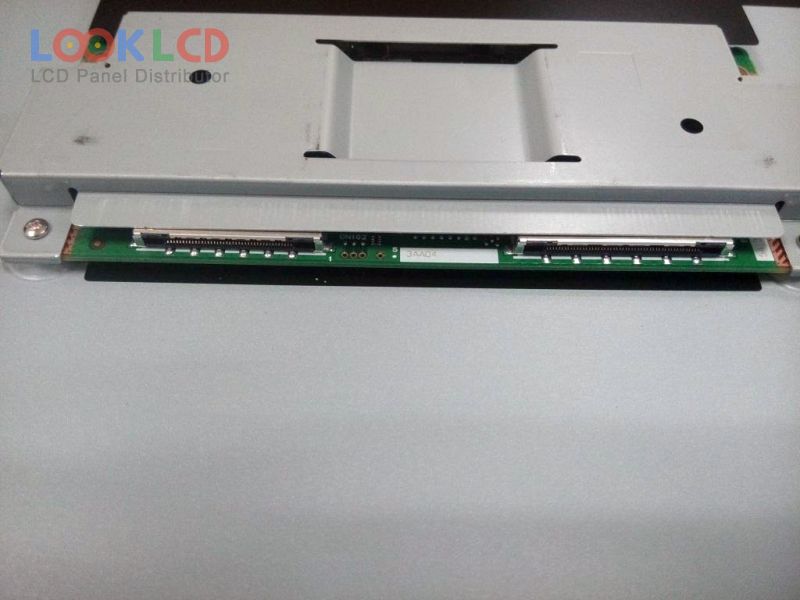

| signalni vmesnik | LVDS (4 ch, 10-bit), 92 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | IA |
