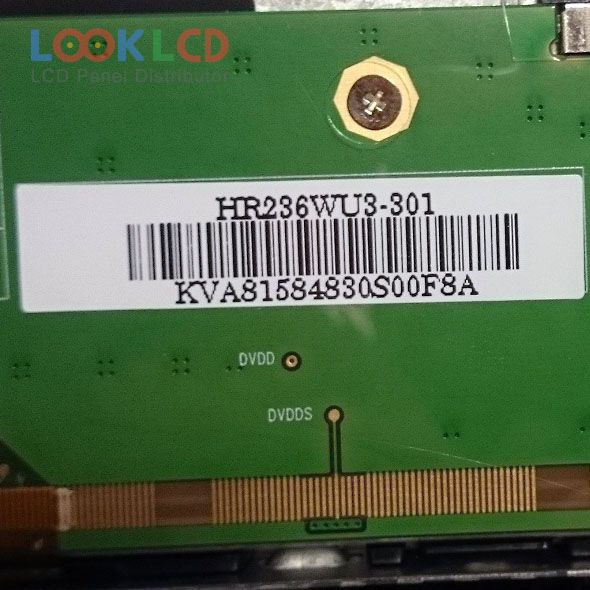

| PartNumber | HR236WU3-301 |
| Znamka | BOE |
| Velikost | 23.6 |
| Aplikacija | DMPC |
| Resolucija | 1920×1080 |
| Sestava | CELL |
| Svetlost | 0 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No B/L |
| Vmesnik | LVDS |
| znamka plošče | BOE |
| panelni model | HR236WU3-301 |
| vrsta plošče | a-Si TFT-LCD , CELL |
| velikost plošče | 23.6 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno območje | 521.28×293.22 mm |
| oris | 535.9×307 mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| globina stekla | 0.50+0.50 mm |
| transmisivnost | 4.35% (Typ.)(with Polarizer) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC) |
| odzivni čas | 14 (Typ.)(G to G) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| signalni vmesnik | LVDS (2 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
