| PartNumber | M236H1-L07 |
| Znamka | Innolux |
| Velikost | 23.6 |
| Aplikacija | DMPC |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 1200:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | CMO |
| panelni model | M236H1-L07 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 23.6 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 521.28×293.22 mm |
| oris | 544.8×320.5 mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 1200:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193172% |
| odzivni čas | 0.7/2.3 (Typ.)(Tr+Td) |
| vidni kot | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |

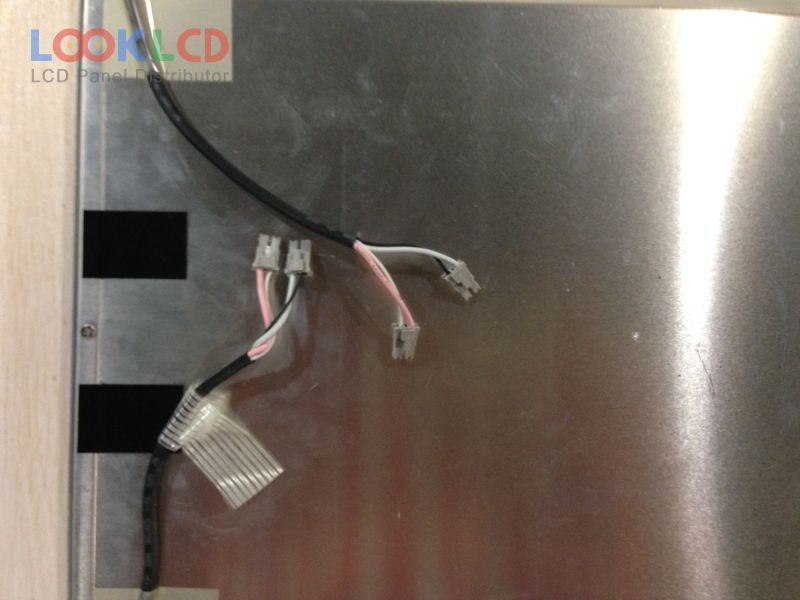

| tip svetilke | 2 pcsCCFLWithout Driver |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
