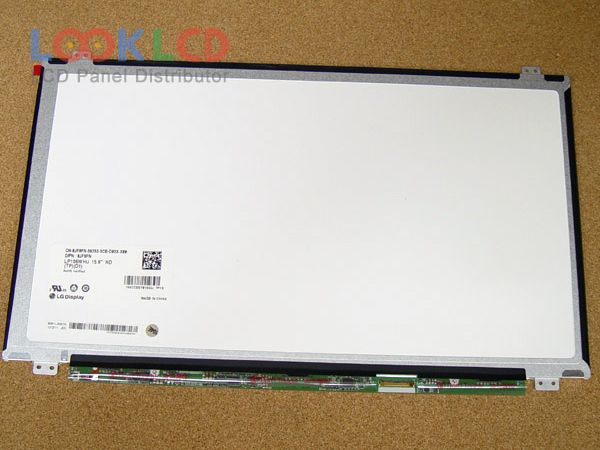

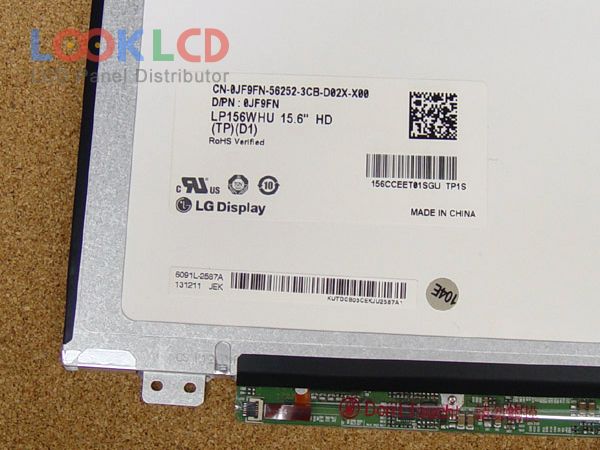

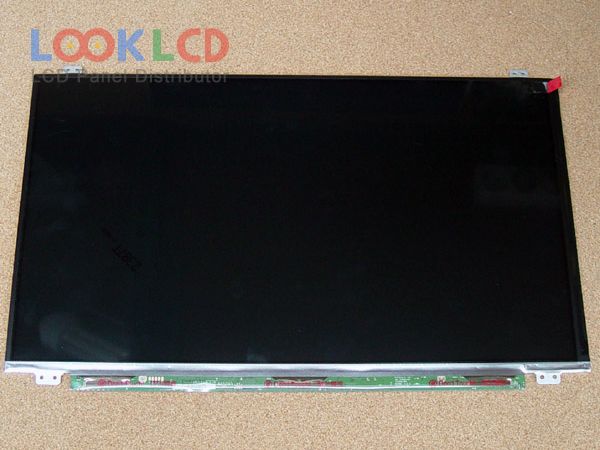

| PartNumber | LP156WHU-TPD1 |
| Znamka | LG Display |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 350:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | LG Display |
| panelni model | LP156WHU-TPD1 8 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 344.232×193.536 mm |
| oris | 359.5×223.5×3.2 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 350:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (1 Lane), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPA1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPD1 | LG Display | 15.6 | 1366×768 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| LM12S029 | SHARP | 12.1 | 800×600 |
| LP154WX5-TLC1 | LG Display | 15.4 | 1280×800 |
| LQ121S1LH03 | SHARP | 12.1 | 800×600 |
| LTD104EDQP | TOSHIBA | 10.4 | 1024×768 |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN154P1-L03 | Samsung | 15.4 | 1680×1050 |
| LTN170U1-L02 | Samsung | 17.0 | 1920×1200 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
