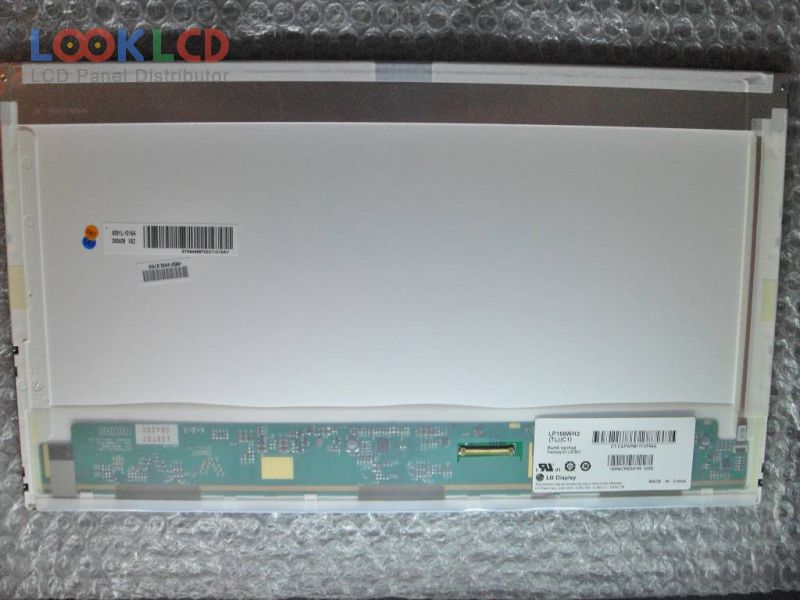

| PartNumber | LP156WH2-TLC1 |
| Znamka | LG Display |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | LG Display |
| panelni model | LP156WH2-TLC1 61 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 344.232×193.536 mm |
| oris | 359.3×209.5×5.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%), Hard coating (3H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Min.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
