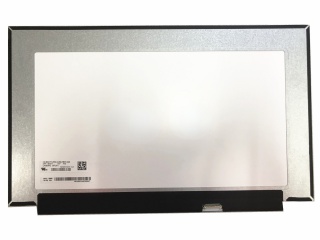

| PartNumber | LP156WFC-SPK1 |
| Znamka | LG Display |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 700:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | LG Display |
| panelni model | LP156WFC-SPK1 |
| velikost plošče | 15.6" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1920(RGB)×1080, FHD, 141PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 344.16(W)×193.59(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 350.66(W)×216.69(H) ×3.2(D) mm |
| površino | Antiglare |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) (TM) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10) |
| način prikaza | IPS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| barve zaslona | 262K 45% NTSC |
| tip svetilke | WLED , 15K hours , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| aplikacija | Laptop |
| signalni vmesnik | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²) |
