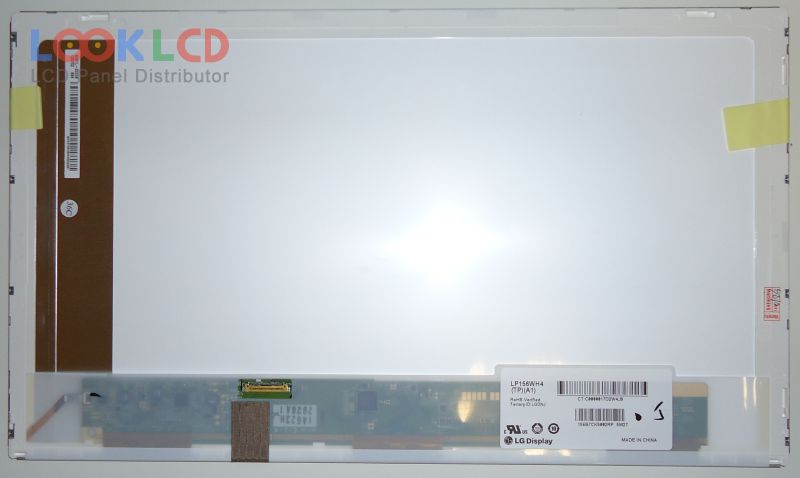

| PartNumber | LP156WH4-TPA1 |
| Znamka | LG Display |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 220 |
| CR | 400:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | LG Display |
| panelni model | LP156WH4-TPA1 3 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 344.232×193.536 mm |
| oris | 359.3×209.5×5.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%) |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4 stringsWLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (1 Lane), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SPH3 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLF1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TPS2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPA1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPD1 | LG Display | 15.6 | 1366×768 |
| CLAA156WA15A | CPT | 15.6 | 1366×768 |
| LP140WH1-TLE2 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLB1 | LG Display | 14.0 | 1366×768 |
| LP156WH2-TLBA | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTN141BT04-002 | Samsung | 14.1 | 1440×900 |
| LTN141BT06-002 | Samsung | 14.1 | 1440×900 |
| LTN154U2-L03 | Samsung | 15.4 | 1920×1200 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
