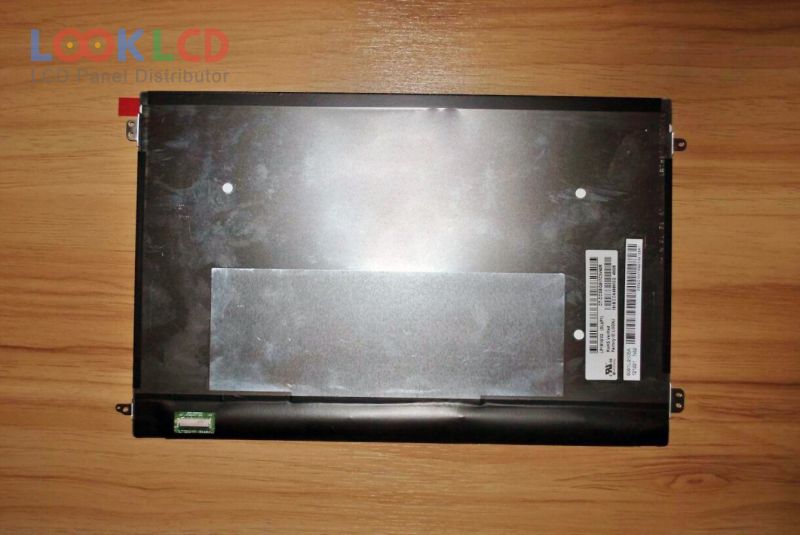

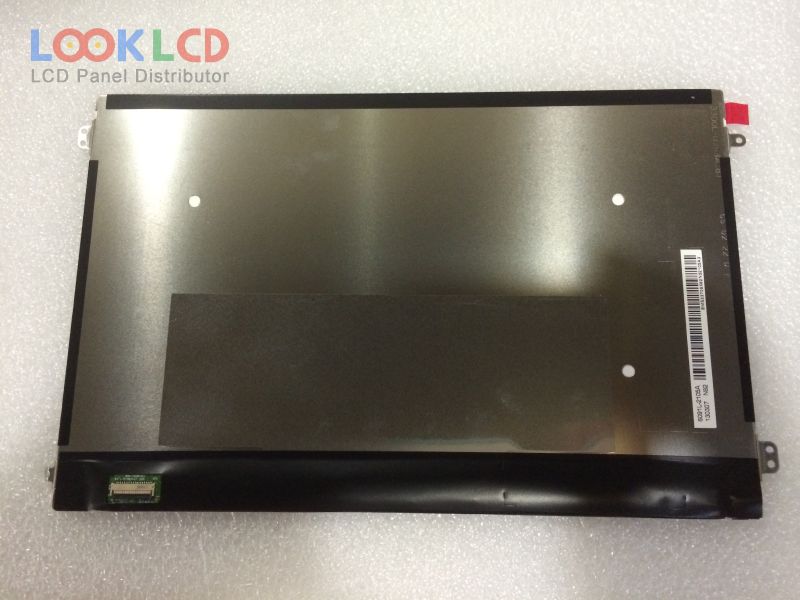

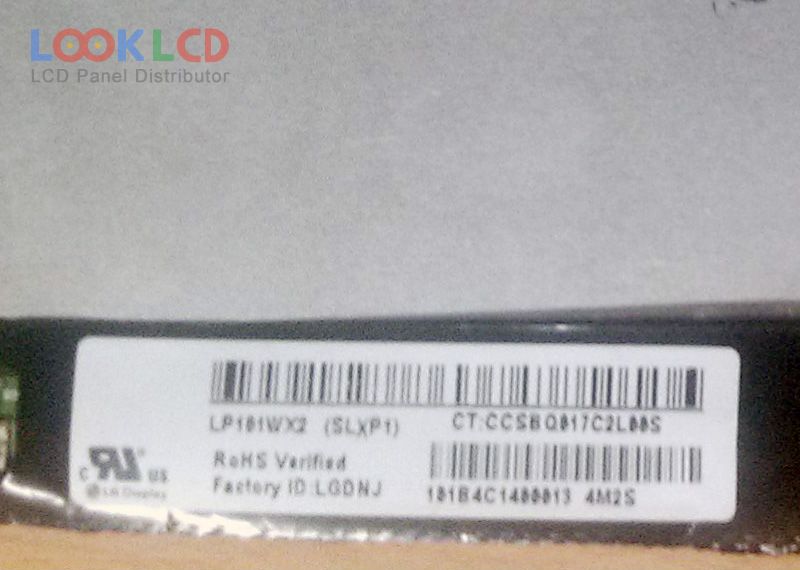

| PartNumber | LP101WX2-SLP1 |
| Znamka | LG Display |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | LG Display |
| panelni model | LP101WX2-SLP1 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 216.96×135.6 mm |
| oris | 228.6×148.15×4.45 mm |
| površino | Glare (Haze 0%) |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Min.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC) |
| odzivni čas | 35 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 8-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
