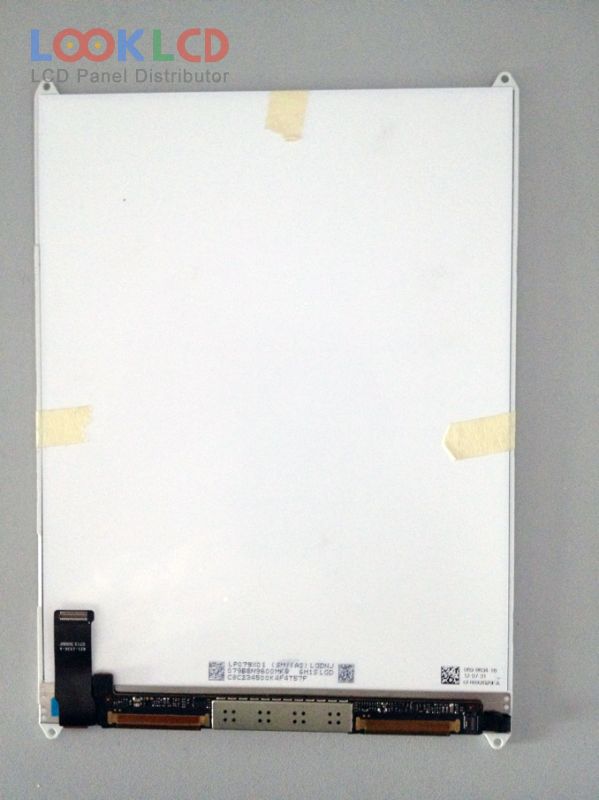

| PartNumber | LP079X01-SMA2 |
| Znamka | LG Display |
| Velikost | 7.9 |
| Aplikacija | PAD |
| Resolucija | 768×1024 |
| Sestava | LCM |
| Svetlost | 425 |
| CR | 900:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka plošče | LG Display |
| panelni model | LP079X01-SMA2 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.9 inch |
| resolucija | 768(RGB)×1024 , XGA |
| način prikaza | AH-IPS, Normally Black, Transmissive |
| aktivno območje | 119.808×159.744 mm |
| oris | 129×171.07 mm |
| površino | |
| svetlost | 425 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 17 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6 stringsWLEDWithout Driver |
| signalni vmesnik | MIPI (4 data lanes) |
| vhodna napetost | 3.6V (Typ.) |
| aplikacija | PAD |
