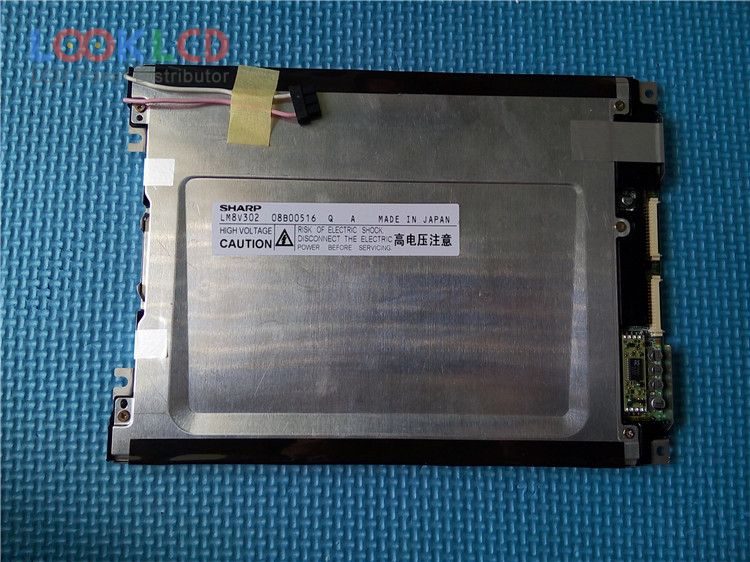

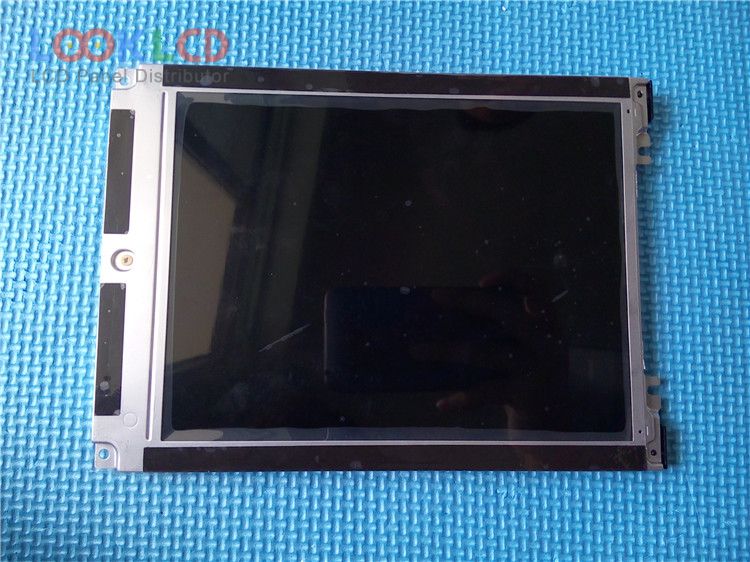

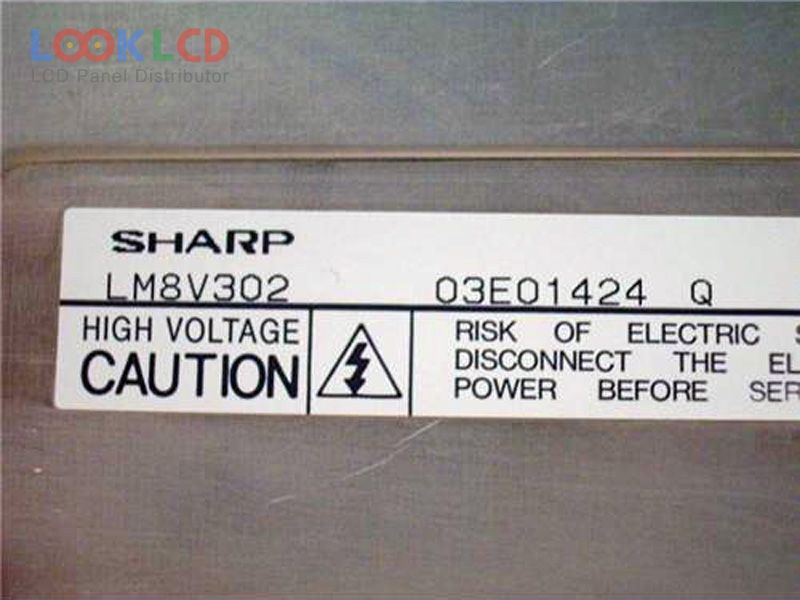

| PartNumber | LM8V302 |
| Znamka | SHARP |
| Velikost | 7.7 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 120 |
| CR | 50:1 |
| Barve | Color |
| Osvetlitev ozadja | CCFL |
| Vmesnik | Parallel Data |
| znamka plošče | SHARP |
| panelni model | LM8V302 |
| vrsta plošče | CSTN-LCD , LCM |
| velikost plošče | 7.7 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | STN, Normally Black, Transmissive |
| aktivno območje | 157.42×118.06 mm |
| oris | 197×142.5 mm |
| površino | |
| svetlost | 120 cd/m² (Typ.) |
| kontrastno razmerje | 50:1 (Typ.) |
| barve zaslona | Color |
| odzivni čas | 270/80 (Typ.)(Tr/Td) |
| vidni kot | 50/50/50/30 (Typ.)(CR≥2)(L/R/U/D) |
| pogostost | 120Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | Parallel Data (8-bit), 29 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
