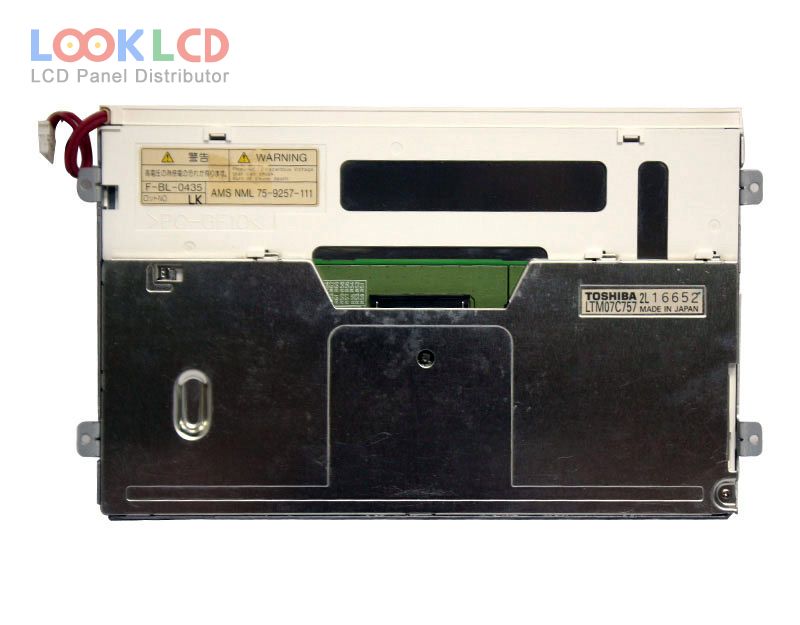

| PartNumber | LTM07C757 |
| Znamka | TOSHIBA |
| Velikost | 7.7 |
| Aplikacija | |
| Resolucija | 400×234 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 250:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | TOSHIBA |
| panelni model | LTM07C757 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.7 inch |
| resolucija | 400(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 169.2×98.982 mm |
| oris | 186.85×119.3 mm |
| površino | Antiglare |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 250:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 70/40 (Max.)(Tr/Td) |
| vidni kot | 55/55/30/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.)(VDD) |
